Installation

These instructions will get you a copy of the project up and running on your local machine for development and testing purposes.

Initial requirements

The Lithops package must be installed in the same Python environment used to run Airflow:

• Lithops

Installing Apache Airflow

Use pip to install the last stable version of Apache Airflow.

$ pip install apache-airflow

Installing Lithops Plugin

There are two alternatives to install the Lithops plugin. Choose one:

• Install the pugin using the setup.py script:

$ python3 setup.py install --user

• Move the module into Airflow's plugin folder:

$ cp -r lithops_airflow_plugin ~/airflow/plugins

Note: Only one of the two options above descripted has to be done.

Optional: Move the example DAGs provided to the dags folder:

$ cp example_dags/example/* ~/airflow/dags/

Airflow Setup

The basic setup is enough to execute the example DAGs:

# initialize the database
airflow initdb
# start the web server, default port is 8080
airflow webserver -p 8080
# start the scheduler
airflow scheduler

Configure Lithops as a Airflow connection (optional)

By default, Lithops plugin will use the configuraton file provided in the home directory (Please refer to Lithops official configuration documentation).

However, using Airflow connections it is possible define another configuration specificaly for the Airflow plugin:

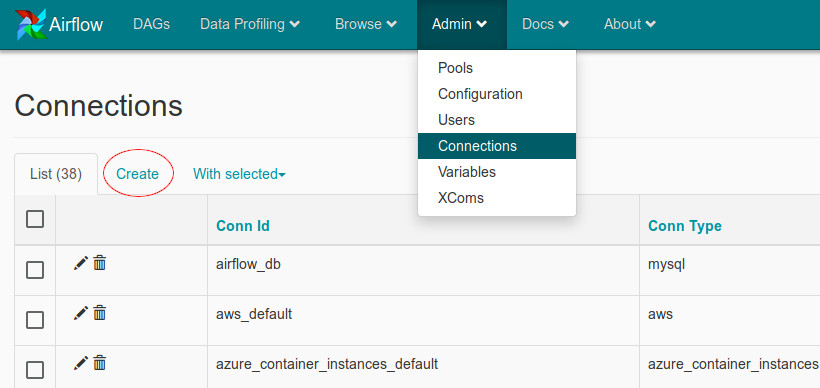

Navigate to localhost:8080 on your browser.

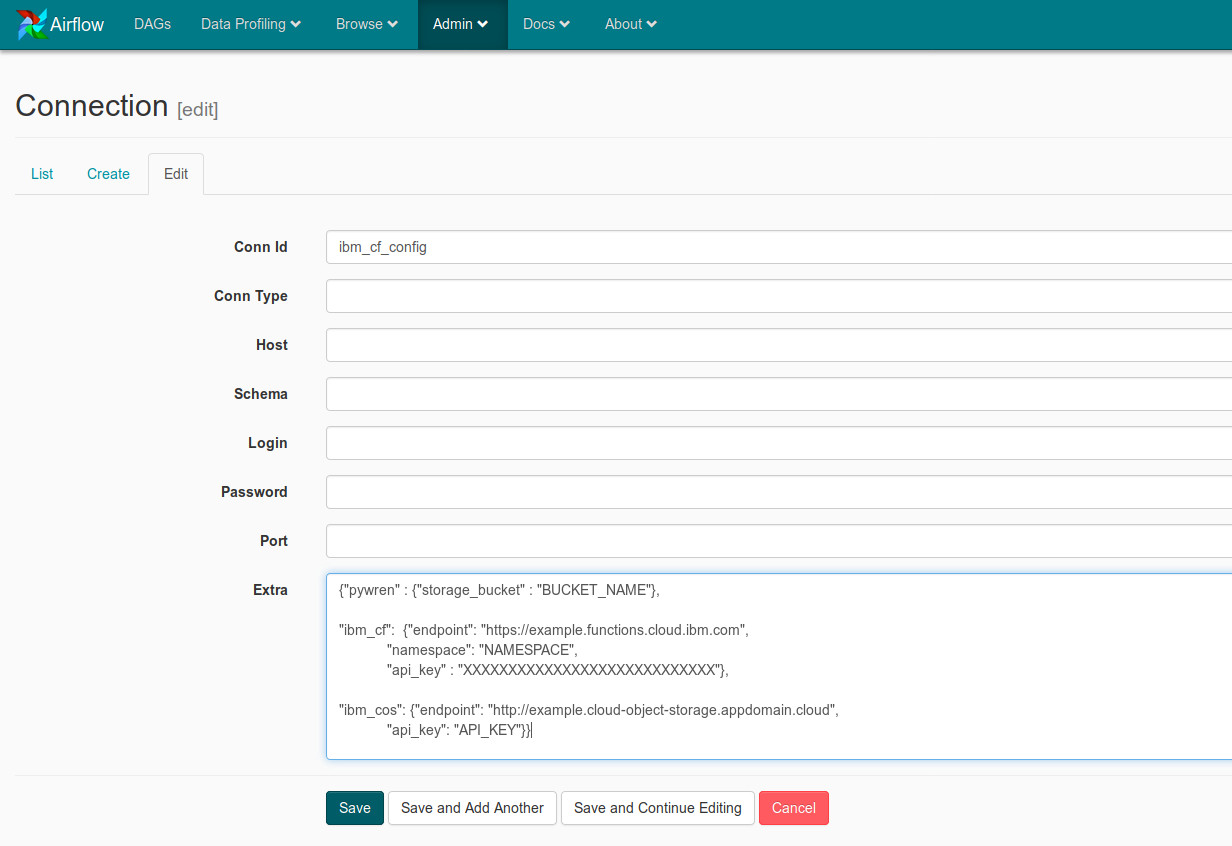

Type lithops_engine_config inside the 'Conn Id' text box. Then, paste a custom Lithops configuration in JSON format into the 'Extra' text box, for example:

{"lithops" : {"storage_bucket" : "BUCKET_NAME"},

"ibm_cf":  {"endpoint": "https://example.functions.cloud.ibm.com",
            "namespace": "NAMESPACE",
            "api_key" : "XXXXXXXXXXXXXXXXXXXXXXXXXXXX"},

"ibm_cos": {"endpoint": "http://example.cloud-object-storage.appdomain.cloud",
            "api_key": "API_KEY"}}

Click 'Save' to exit.
