What

Adds a data-driven fidelity test suite (scripts/fidelity-app) that, for every component with a native equivalent, renders the real native OS widget (rasterized off-screen) alongside the CN1 component under the native theme, and measures a per-component similarity score. Routine CI renders only the CN1 side and diffs against committed native goldens; a one-way ratchet (FidelityGate) fails only when a change drops a pair below its baseline.

It then drives the Android Material 3 theme from 94.9% → 96.2% overall fidelity through real framework + theme fixes — every change verified pixel-for-pixel against the native golden, no metric softening.

Framework fixes (each fixes a real Material-fidelity bug)

Fix Effect
FloatingActionButton honors a fabDiameterMM constant (Material's fixed 56dp) instead of the legacy icon*11/4 (~71dp) heuristic FAB 85.7 → 98.5
Tabs.paintAnimatedIndicator reads tabsAnimatedIndicatorThicknessMm as a float (an int read silently dropped "0.45" → a 2×-too-thick indicator) indicator 16px → 7px
New Tabs.paintBottomDivider (opt-in tabsBottomDividerBool) paints the full-width M3 tab divider directly — a CSS border-bottom does not paint on the custom tab-row Container; colour comes from the TabsDivider UIID (light/dark aware) Tabs light 84.9 → 91.5
DefaultLookAndFeel disabled-unchecked checkbox/radio box reads the *UncheckedColorUIID's own .disabled style, so the greyed box outline diverges from the (darker) disabled label text, as Material renders them CheckBox 93.4 → 95.3, Radio 94.2 → 96.0

Plus the tuned native-themes/android-material/theme.css and recompiled shipped .res (Themes/, Ports, JS mirror).

Host tooling

ProcessScreenshots --mode fidelity, RenderFidelityReport, FidelityGate (ratchet), cn1ss.sh helpers, run-{android,ios}-fidelity-tests.sh, and the scripts-fidelity GitHub workflow.

Known limitation — iOS native references blocked

The iOS round cannot yet collect native UIKit references: rendering the native widget inside a ParparVM native method NPEs as soon as it does real UIKit work (a trivial stub delivers cleanly; reproduces identically with or without dispatch_sync, and String-arg/BOOL-return marshal fine — so it is neither a threading nor a marshaling fault). Documented in com_codenameone_fidelity_NativeWidgetFactoryImpl.m. Resolving it needs a ParparVM runtime fix, or rendering the native reference via a PeerComponent + Display.screenshot() instead of a NativeInterface method. The Android off-screen path (View.draw → Bitmap) works fully.

🤖 Generated with Claude Code

shai-almog and others added 2 commits June 24, 2026 06:18
@shai-almog @claude
Native theme fidelity suite + Material 3 fidelity fixes
243ba93
Adds a data-driven fidelity test suite (scripts/fidelity-app) that renders
each component under the native theme alongside the REAL native OS widget
(off-screen rasterized) and measures per-component visual fidelity, gated by
a one-way ratchet vs a committed baseline. Android round raises overall
Material 3 fidelity 94.9% -> 96.2% via real framework fixes (verified pixel
vs the native golden, no metric softening):

- FloatingActionButton: honor a fabDiameterMM theme constant for the Material
  56dp fixed diameter instead of the icon*11/4 (~71dp) heuristic. FAB 85->98.
- Tabs.paintAnimatedIndicator: read tabsAnimatedIndicatorThicknessMm as a
  float (an int read dropped "0.45" -> 2x-too-thick indicator).
- Tabs.paintBottomDivider: new opt-in (tabsBottomDividerBool) full-width M3
  divider painted directly (a border-bottom does not paint on the custom
  tab-row Container); colour from the TabsDivider UIID (light/dark aware).
- DefaultLookAndFeel: disabled-unchecked checkbox/radio box reads the
  *UncheckedColorUIID's own .disabled style, so the greyed box outline can
  differ from the darker disabled label text (Material renders them distinctly).

Theme (native-themes/android-material/theme.css) + recompiled shipped res.

Host tooling: ProcessScreenshots --mode fidelity, RenderFidelityReport,
FidelityGate (ratchet), cn1ss.sh helpers, run-*-fidelity-tests.sh, and the
scripts-fidelity GitHub workflow.

iOS round is blocked: rendering the native UIKit reference inside a ParparVM
native method NPEs whenever it does real UIKit work (a trivial stub delivers;
not a threading or marshaling fault). Documented in the iOS NativeWidgetFactory
impl; needs a ParparVM fix or a PeerComponent+screenshot redesign.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog @claude
ci: mark iOS fidelity job non-blocking (ParparVM native-render blocker)
f108bb2
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

JavaSE simulator screenshot updates

Compared 11 screenshots: 10 matched, 1 updated.

  • javase-single-component-inspector — updated screenshot. Screenshot differs (2200x1400 px, bit depth 8).

    javase-single-component-inspector
    Preview info: JPEG preview quality 20; JPEG preview quality 20; downscaled to 1540x980.
    Full-resolution PNG saved as javase-single-component-inspector.png in workflow artifacts.

@shai-almog @claude
ci: make build-fidelity-app.sh executable (exit 126 in CI)
ebe84de
Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@github-actions

github-actions Bot commented Jun 24, 2026

Copy link
Copy Markdown
Contributor

Cloudflare Preview

@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Native fidelity (Android, Material 3)

54 pairs compared -- median 93.8%, worst 75.4% (Tabs_normal_light), 25th pct 92.4%, mean 93.3%.

Distribution -- >=99%: 7 | 95-99%: 10 | 90-95%: 30 | <90%: 7

Component State Appearance Fidelity SSIM mean delta vs base
Tabs normal light 75.4% 0.904 3.41 -16.1
Tabs normal dark 77.3% 0.903 4.19 -22.2
Dialog normal dark 78.7% 0.819 8.29 -12.4
Dialog normal light 83.4% 0.878 5.72 -10.5
Button pressed dark 87.9% 0.939 5.69 -3.3
FloatingActionButton normal light 88.9% 0.964 0.68 -10.2
FloatingActionButton pressed light 88.9% 0.964 0.68 -10.2
Switch selected dark 90.9% 0.960 2.19 -6.5
Button normal dark 91.1% 0.940 3.72 -7.4
Switch disabled dark 92.0% 0.954 1.07 -1.6
Switch selected light 92.0% 0.960 1.87 -5.5
Button pressed light 92.3% 0.944 3.98 -2.3
FlatButton normal dark 92.4% 0.928 3.09 -0.5
FlatButton pressed dark 92.4% 0.928 3.09 -0.5
Switch disabled light 92.7% 0.963 0.81 +1.6
RadioButton normal dark 92.7% 0.957 2.58 -2.3
Switch normal light 92.7% 0.953 1.82 -1.4
RadioButton normal light 93.0% 0.958 2.19 -2.1
FlatButton normal light 93.1% 0.931 2.63 -1.4
FlatButton pressed light 93.1% 0.931 2.63 -1.4
Switch normal dark 93.1% 0.954 1.74 +1.7
RadioButton selected dark 93.3% 0.957 2.85 -2.3
Button disabled dark 93.6% 0.940 2.45 -0.2
Button normal light 93.7% 0.944 2.90 -4.9
RaisedButton normal light 93.7% 0.955 1.65 -4.9
RaisedButton pressed light 93.7% 0.955 1.65 -4.9
FloatingActionButton normal dark 93.8% 0.952 1.43 -5.2
FloatingActionButton pressed dark 93.8% 0.952 1.43 -5.2
RadioButton selected light 93.9% 0.958 2.18 -2.2
RadioButton disabled dark 94.3% 0.957 1.39 -2.8
RadioButton disabled light 94.4% 0.960 1.28 -2.7
CheckBox selected dark 94.4% 0.942 3.06 +0.3
Slider normal dark 94.4% 0.991 1.03 -2.7
CheckBox normal dark 94.7% 0.943 3.17 +0.6
CheckBox normal light 94.8% 0.945 2.72 +0.1
CheckBox disabled light 94.8% 0.949 1.58 -1.8
CheckBox selected light 94.8% 0.944 2.43 -0.7
CheckBox disabled dark 95.0% 0.946 1.73 -1.6
Button disabled light 95.3% 0.953 1.25 -2.7
RaisedButton normal dark 95.5% 0.943 2.09 -3.1
RaisedButton pressed dark 95.5% 0.943 2.09 -3.1
RaisedButton disabled dark 96.0% 0.947 1.15 -2.7
TextField disabled dark 96.1% 0.958 0.90 +1.0
RaisedButton disabled light 96.2% 0.954 0.93 -2.6
ProgressBar normal dark 97.1% 0.961 2.40 -2.9
ProgressBar normal light 97.1% 0.969 1.81 -2.9
TextField disabled light 98.1% 0.958 0.93 -0.1
Slider normal light 99.4% 0.998 0.08 -0.4
TextField normal dark 99.5% 0.951 2.16 +4.0
TextField normal light 99.5% 0.951 1.92 +3.8
Slider disabled dark 99.7% 0.998 0.12 -0.1
Slider disabled light 99.7% 0.998 0.08 -0.1
Toolbar normal dark 99.8% 0.903 1.82 +7.6
Toolbar normal light 100.0% 0.970 1.49 +3.5

Side-by-side comparisons (worst first)

  • Tabs_normal_light -- 75.40% fidelity (SSIM 0.9044) (-16.14 vs baseline)

    native Tabs_normal_light cn1 Tabs_normal_light
    Left: native widget. Right: Codename One render.

  • Tabs_normal_dark -- 77.28% fidelity (SSIM 0.9033) (-22.15 vs baseline)

    native Tabs_normal_dark cn1 Tabs_normal_dark
    Left: native widget. Right: Codename One render.

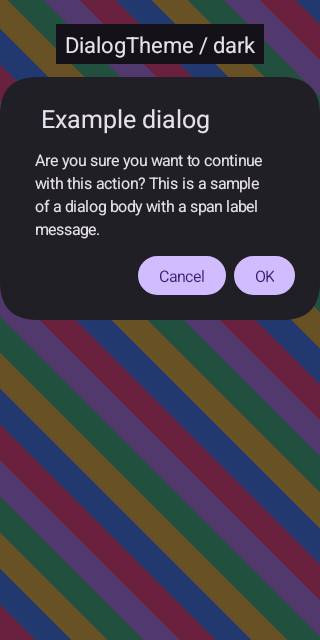

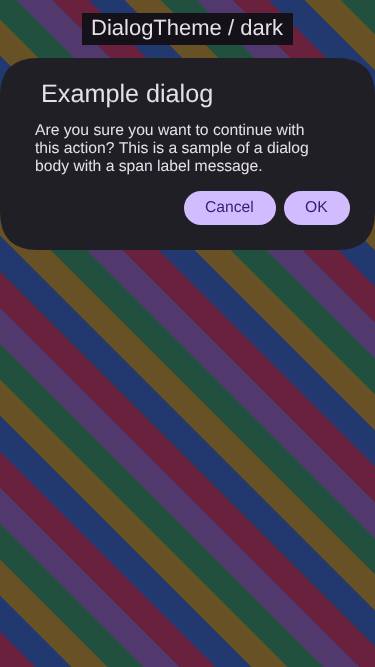

  • Dialog_normal_dark -- 78.65% fidelity (SSIM 0.8191) (-12.40 vs baseline)

    native Dialog_normal_dark cn1 Dialog_normal_dark
    Left: native widget. Right: Codename One render.

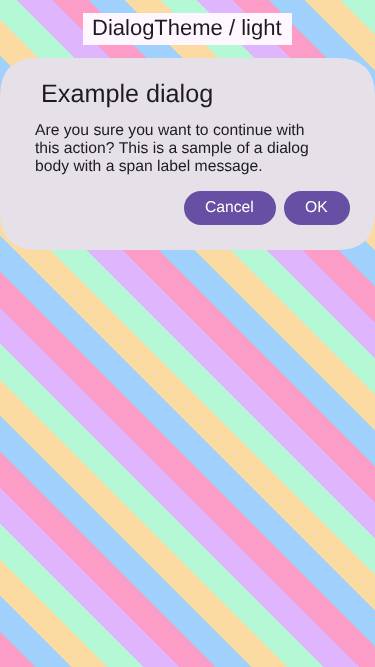

  • Dialog_normal_light -- 83.44% fidelity (SSIM 0.8779) (-10.49 vs baseline)

    native Dialog_normal_light cn1 Dialog_normal_light
    Left: native widget. Right: Codename One render.

  • Button_pressed_dark -- 87.90% fidelity (SSIM 0.9388) (-3.29 vs baseline)

    native Button_pressed_dark cn1 Button_pressed_dark
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_normal_light -- 88.88% fidelity (SSIM 0.9636) (-10.24 vs baseline)

    native FloatingActionButton_normal_light cn1 FloatingActionButton_normal_light
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_pressed_light -- 88.88% fidelity (SSIM 0.9636) (-10.24 vs baseline)

    native FloatingActionButton_pressed_light cn1 FloatingActionButton_pressed_light
    Left: native widget. Right: Codename One render.

  • Switch_selected_dark -- 90.86% fidelity (SSIM 0.9596) (-6.51 vs baseline)

    native Switch_selected_dark cn1 Switch_selected_dark
    Left: native widget. Right: Codename One render.

  • Button_normal_dark -- 91.13% fidelity (SSIM 0.9400) (-7.35 vs baseline)

    native Button_normal_dark cn1 Button_normal_dark
    Left: native widget. Right: Codename One render.

  • Switch_disabled_dark -- 91.96% fidelity (SSIM 0.9537) (-1.59 vs baseline)

    native Switch_disabled_dark cn1 Switch_disabled_dark
    Left: native widget. Right: Codename One render.

  • Switch_selected_light -- 91.99% fidelity (SSIM 0.9598) (-5.54 vs baseline)

    native Switch_selected_light cn1 Switch_selected_light
    Left: native widget. Right: Codename One render.

  • Button_pressed_light -- 92.30% fidelity (SSIM 0.9440) (-2.27 vs baseline)

    native Button_pressed_light cn1 Button_pressed_light
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_dark -- 92.39% fidelity (SSIM 0.9278) (-0.46 vs baseline)

    native FlatButton_normal_dark cn1 FlatButton_normal_dark
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_dark -- 92.39% fidelity (SSIM 0.9278) (-0.46 vs baseline)

    native FlatButton_pressed_dark cn1 FlatButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • Switch_disabled_light -- 92.65% fidelity (SSIM 0.9634) (+1.55 vs baseline)

    native Switch_disabled_light cn1 Switch_disabled_light
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_dark -- 92.68% fidelity (SSIM 0.9565) (-2.26 vs baseline)

    native RadioButton_normal_dark cn1 RadioButton_normal_dark
    Left: native widget. Right: Codename One render.

  • Switch_normal_light -- 92.70% fidelity (SSIM 0.9532) (-1.40 vs baseline)

    native Switch_normal_light cn1 Switch_normal_light
    Left: native widget. Right: Codename One render.

  • RadioButton_normal_light -- 93.01% fidelity (SSIM 0.9580) (-2.14 vs baseline)

    native RadioButton_normal_light cn1 RadioButton_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_normal_light -- 93.13% fidelity (SSIM 0.9313) (-1.36 vs baseline)

    native FlatButton_normal_light cn1 FlatButton_normal_light
    Left: native widget. Right: Codename One render.

  • FlatButton_pressed_light -- 93.13% fidelity (SSIM 0.9313) (-1.36 vs baseline)

    native FlatButton_pressed_light cn1 FlatButton_pressed_light
    Left: native widget. Right: Codename One render.

  • Switch_normal_dark -- 93.14% fidelity (SSIM 0.9537) (+1.72 vs baseline)

    native Switch_normal_dark cn1 Switch_normal_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_dark -- 93.31% fidelity (SSIM 0.9565) (-2.25 vs baseline)

    native RadioButton_selected_dark cn1 RadioButton_selected_dark
    Left: native widget. Right: Codename One render.

  • Button_disabled_dark -- 93.63% fidelity (SSIM 0.9401) (-0.21 vs baseline)

    native Button_disabled_dark cn1 Button_disabled_dark
    Left: native widget. Right: Codename One render.

  • Button_normal_light -- 93.67% fidelity (SSIM 0.9444) (-4.87 vs baseline)

    native Button_normal_light cn1 Button_normal_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_light -- 93.70% fidelity (SSIM 0.9545) (-4.90 vs baseline)

    native RaisedButton_normal_light cn1 RaisedButton_normal_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_light -- 93.70% fidelity (SSIM 0.9545) (-4.90 vs baseline)

    native RaisedButton_pressed_light cn1 RaisedButton_pressed_light
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_normal_dark -- 93.76% fidelity (SSIM 0.9522) (-5.24 vs baseline)

    native FloatingActionButton_normal_dark cn1 FloatingActionButton_normal_dark
    Left: native widget. Right: Codename One render.

  • FloatingActionButton_pressed_dark -- 93.76% fidelity (SSIM 0.9522) (-5.24 vs baseline)

    native FloatingActionButton_pressed_dark cn1 FloatingActionButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_selected_light -- 93.89% fidelity (SSIM 0.9579) (-2.24 vs baseline)

    native RadioButton_selected_light cn1 RadioButton_selected_light
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_dark -- 94.28% fidelity (SSIM 0.9565) (-2.76 vs baseline)

    native RadioButton_disabled_dark cn1 RadioButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • RadioButton_disabled_light -- 94.38% fidelity (SSIM 0.9597) (-2.74 vs baseline)

    native RadioButton_disabled_light cn1 RadioButton_disabled_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_dark -- 94.41% fidelity (SSIM 0.9415) (+0.28 vs baseline)

    native CheckBox_selected_dark cn1 CheckBox_selected_dark
    Left: native widget. Right: Codename One render.

  • Slider_normal_dark -- 94.41% fidelity (SSIM 0.9914) (-2.67 vs baseline)

    native Slider_normal_dark cn1 Slider_normal_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_dark -- 94.72% fidelity (SSIM 0.9431) (+0.59 vs baseline)

    native CheckBox_normal_dark cn1 CheckBox_normal_dark
    Left: native widget. Right: Codename One render.

  • CheckBox_normal_light -- 94.79% fidelity (SSIM 0.9449) (+0.07 vs baseline)

    native CheckBox_normal_light cn1 CheckBox_normal_light
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_light -- 94.81% fidelity (SSIM 0.9486) (-1.79 vs baseline)

    native CheckBox_disabled_light cn1 CheckBox_disabled_light
    Left: native widget. Right: Codename One render.

  • CheckBox_selected_light -- 94.83% fidelity (SSIM 0.9441) (-0.65 vs baseline)

    native CheckBox_selected_light cn1 CheckBox_selected_light
    Left: native widget. Right: Codename One render.

  • CheckBox_disabled_dark -- 95.02% fidelity (SSIM 0.9457) (-1.61 vs baseline)

    native CheckBox_disabled_dark cn1 CheckBox_disabled_dark
    Left: native widget. Right: Codename One render.

  • Button_disabled_light -- 95.33% fidelity (SSIM 0.9526) (-2.67 vs baseline)

    native Button_disabled_light cn1 Button_disabled_light
    Left: native widget. Right: Codename One render.

  • RaisedButton_normal_dark -- 95.54% fidelity (SSIM 0.9432) (-3.13 vs baseline)

    native RaisedButton_normal_dark cn1 RaisedButton_normal_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_pressed_dark -- 95.54% fidelity (SSIM 0.9432) (-3.13 vs baseline)

    native RaisedButton_pressed_dark cn1 RaisedButton_pressed_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_dark -- 96.03% fidelity (SSIM 0.9473) (-2.66 vs baseline)

    native RaisedButton_disabled_dark cn1 RaisedButton_disabled_dark
    Left: native widget. Right: Codename One render.

  • TextField_disabled_dark -- 96.09% fidelity (SSIM 0.9584) (+1.01 vs baseline)

    native TextField_disabled_dark cn1 TextField_disabled_dark
    Left: native widget. Right: Codename One render.

  • RaisedButton_disabled_light -- 96.18% fidelity (SSIM 0.9543) (-2.57 vs baseline)

    native RaisedButton_disabled_light cn1 RaisedButton_disabled_light
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_dark -- 97.13% fidelity (SSIM 0.9611) (-2.87 vs baseline)

    native ProgressBar_normal_dark cn1 ProgressBar_normal_dark
    Left: native widget. Right: Codename One render.

  • ProgressBar_normal_light -- 97.13% fidelity (SSIM 0.9694) (-2.87 vs baseline)

    native ProgressBar_normal_light cn1 ProgressBar_normal_light
    Left: native widget. Right: Codename One render.

  • TextField_disabled_light -- 98.13% fidelity (SSIM 0.9584) (-0.07 vs baseline)

    native TextField_disabled_light cn1 TextField_disabled_light
    Left: native widget. Right: Codename One render.

  • Slider_normal_light -- 99.40% fidelity (SSIM 0.9978) (-0.40 vs baseline)

    native Slider_normal_light cn1 Slider_normal_light
    Left: native widget. Right: Codename One render.

  • TextField_normal_dark -- 99.45% fidelity (SSIM 0.9508) (+4.02 vs baseline)

    native TextField_normal_dark cn1 TextField_normal_dark
    Left: native widget. Right: Codename One render.

  • TextField_normal_light -- 99.48% fidelity (SSIM 0.9506) (+3.84 vs baseline)

    native TextField_normal_light cn1 TextField_normal_light
    Left: native widget. Right: Codename One render.

  • Slider_disabled_dark -- 99.70% fidelity (SSIM 0.9976) (-0.09 vs baseline)

    native Slider_disabled_dark cn1 Slider_disabled_dark
    Left: native widget. Right: Codename One render.

  • Slider_disabled_light -- 99.71% fidelity (SSIM 0.9977) (-0.09 vs baseline)

    native Slider_disabled_light cn1 Slider_disabled_light
    Left: native widget. Right: Codename One render.

  • Toolbar_normal_dark -- 99.76% fidelity (SSIM 0.9026) (+7.58 vs baseline)

    native Toolbar_normal_dark cn1 Toolbar_normal_dark
    Left: native widget. Right: Codename One render.

  • Toolbar_normal_light -- 99.98% fidelity (SSIM 0.9704) (+3.53 vs baseline)

    native Toolbar_normal_light cn1 Toolbar_normal_light
    Left: native widget. Right: Codename One render.

@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Android screenshot updates

Compared 136 screenshots: 104 matched, 32 updated.

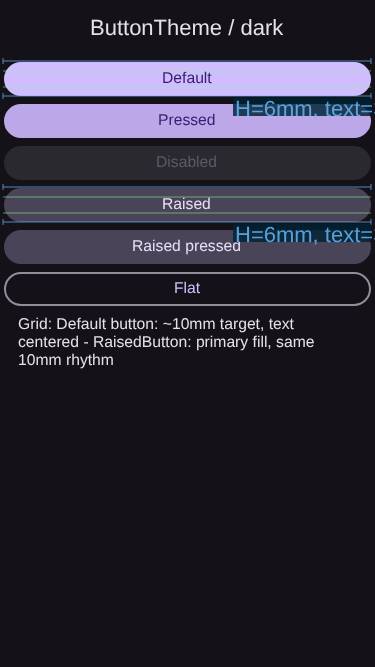

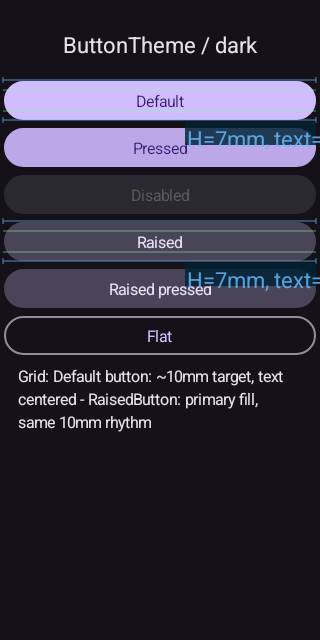

  • ButtonTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ButtonTheme_dark.png in workflow artifacts.

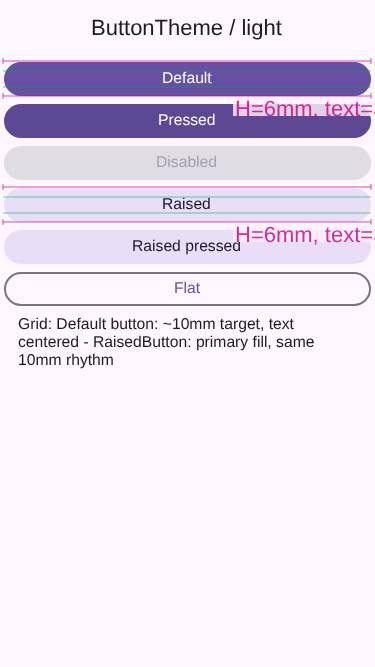

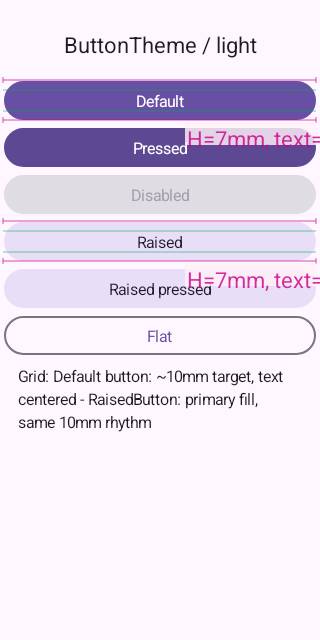

  • ButtonTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ButtonTheme_light.png in workflow artifacts.

  • ChatInput_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ChatInput_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatInput_dark.png in workflow artifacts.

  • ChatInput_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ChatInput_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatInput_light.png in workflow artifacts.

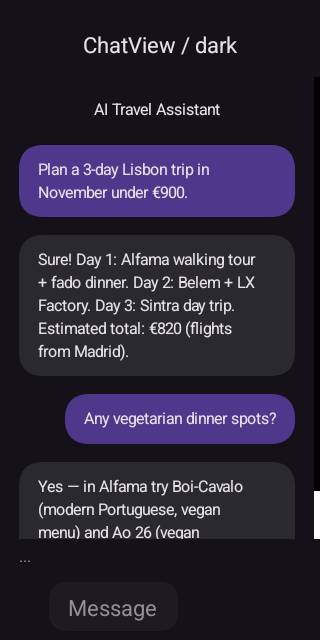

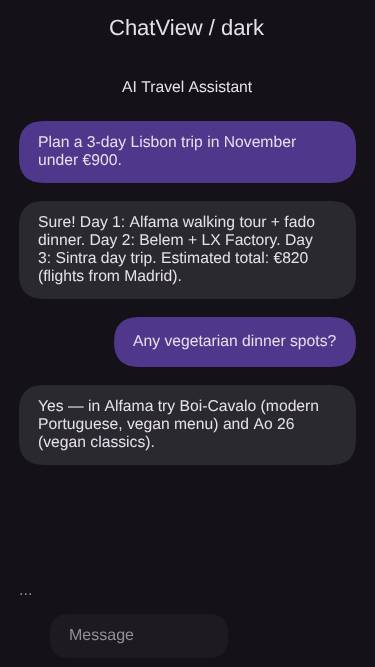

  • ChatView_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ChatView_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatView_dark.png in workflow artifacts.

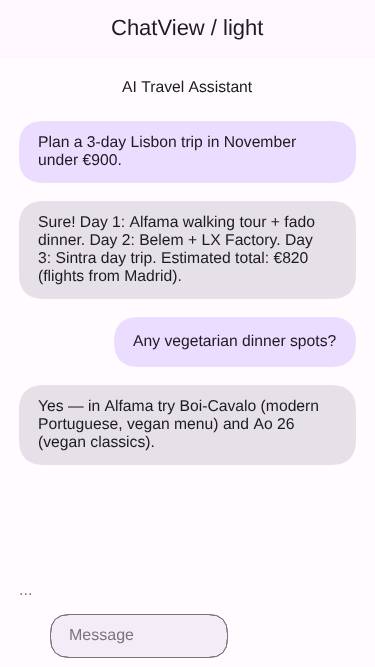

  • ChatView_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ChatView_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatView_light.png in workflow artifacts.

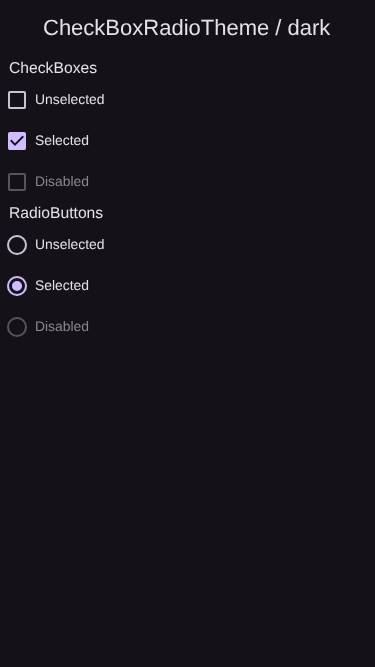

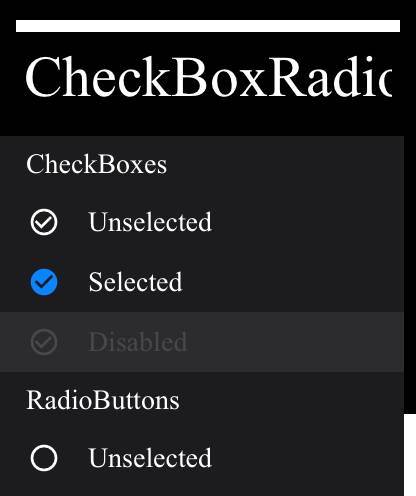

  • CheckBoxRadioTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    CheckBoxRadioTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_dark.png in workflow artifacts.

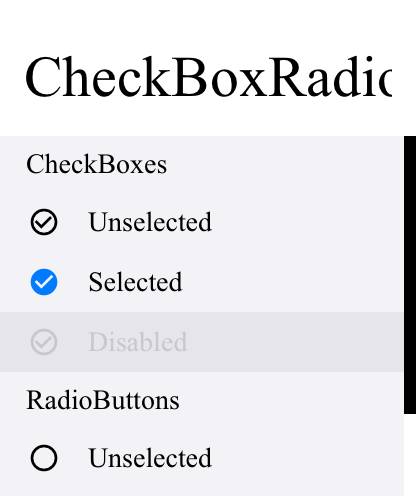

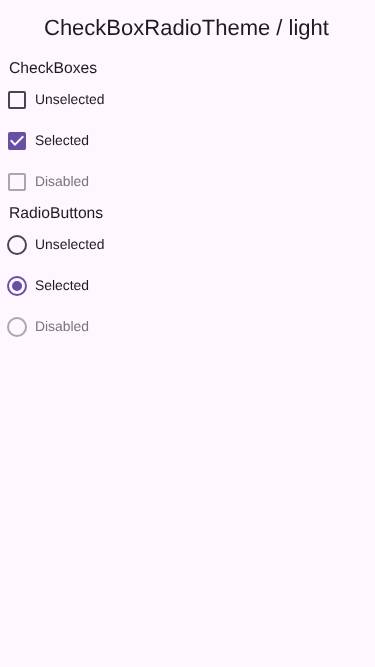

  • CheckBoxRadioTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    CheckBoxRadioTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_light.png in workflow artifacts.

  • DialogTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    DialogTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as DialogTheme_dark.png in workflow artifacts.

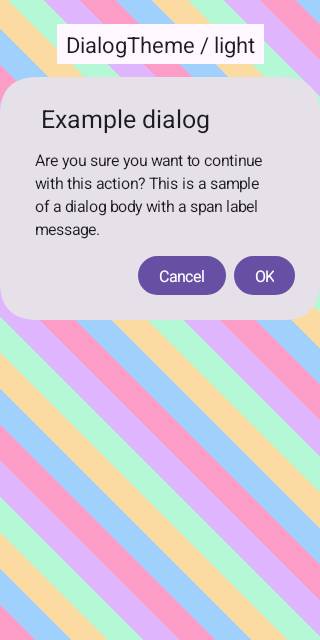

  • DialogTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    DialogTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as DialogTheme_light.png in workflow artifacts.

  • FloatingActionButtonTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    FloatingActionButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as FloatingActionButtonTheme_dark.png in workflow artifacts.

  • FloatingActionButtonTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    FloatingActionButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as FloatingActionButtonTheme_light.png in workflow artifacts.

  • ListTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ListTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ListTheme_dark.png in workflow artifacts.

  • ListTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ListTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ListTheme_light.png in workflow artifacts.

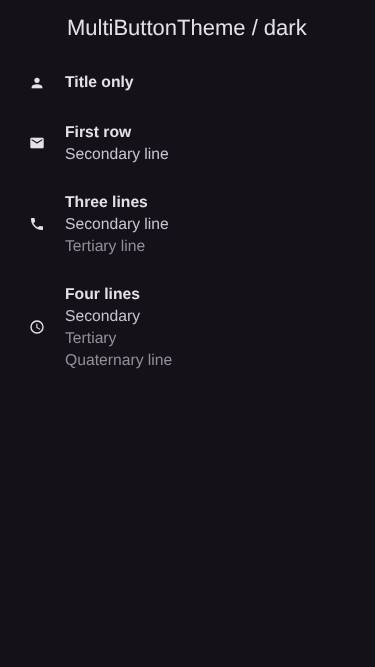

  • MultiButtonTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    MultiButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as MultiButtonTheme_dark.png in workflow artifacts.

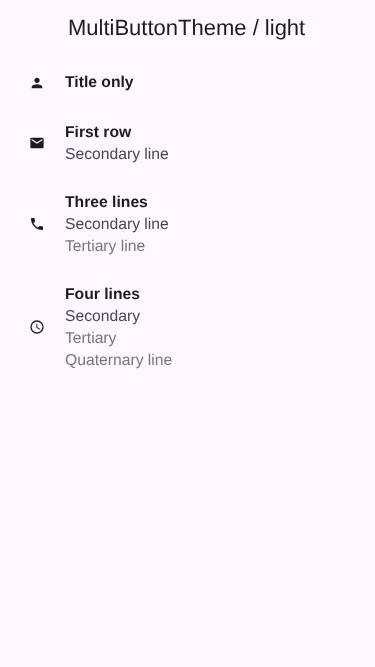

  • MultiButtonTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    MultiButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as MultiButtonTheme_light.png in workflow artifacts.

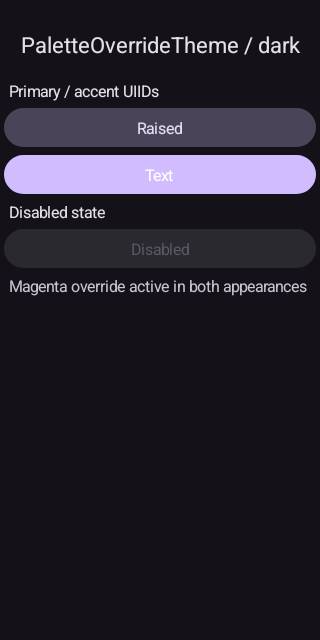

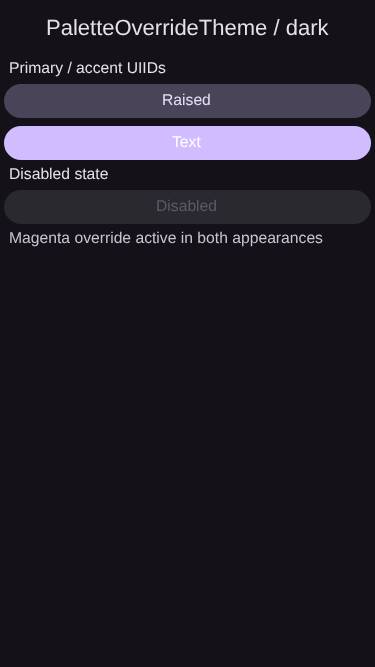

  • PaletteOverrideTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    PaletteOverrideTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PaletteOverrideTheme_dark.png in workflow artifacts.

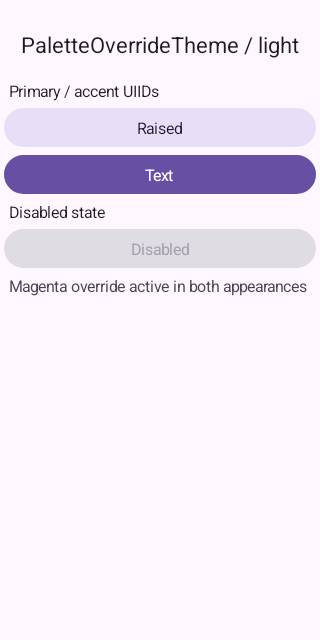

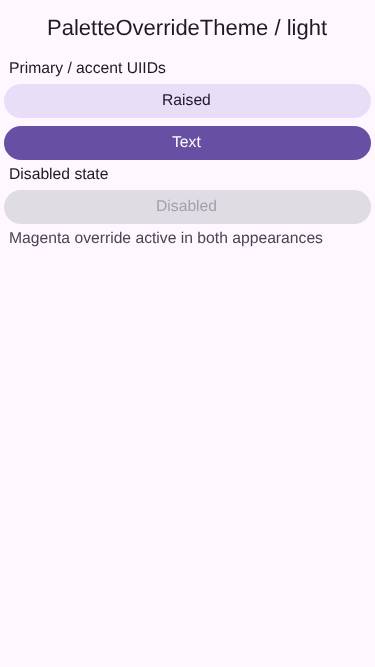

  • PaletteOverrideTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    PaletteOverrideTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PaletteOverrideTheme_light.png in workflow artifacts.

  • PickerTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    PickerTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PickerTheme_dark.png in workflow artifacts.

  • PickerTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    PickerTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PickerTheme_light.png in workflow artifacts.

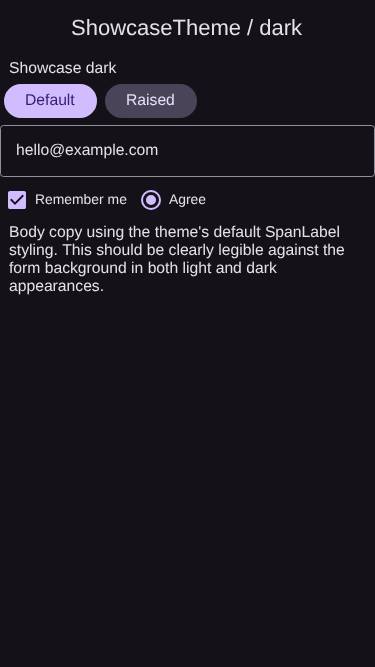

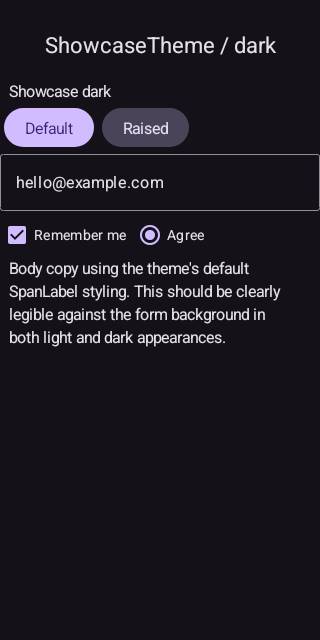

  • ShowcaseTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ShowcaseTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_dark.png in workflow artifacts.

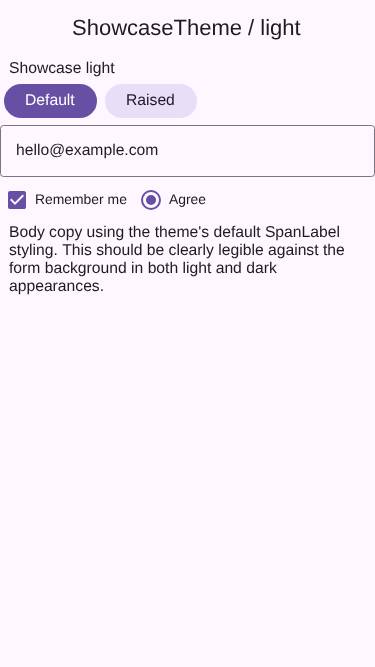

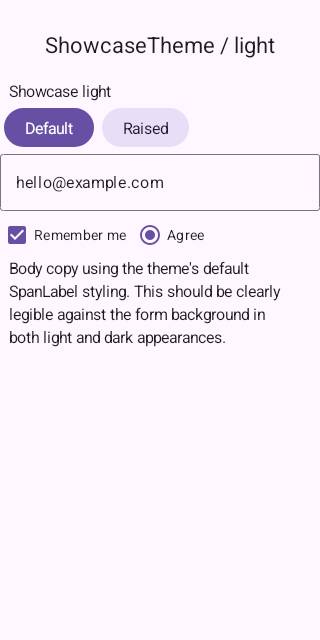

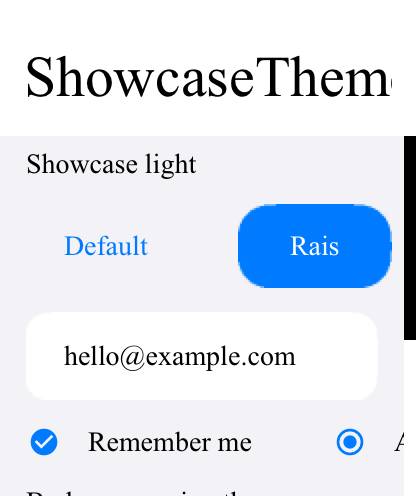

  • ShowcaseTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ShowcaseTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_light.png in workflow artifacts.

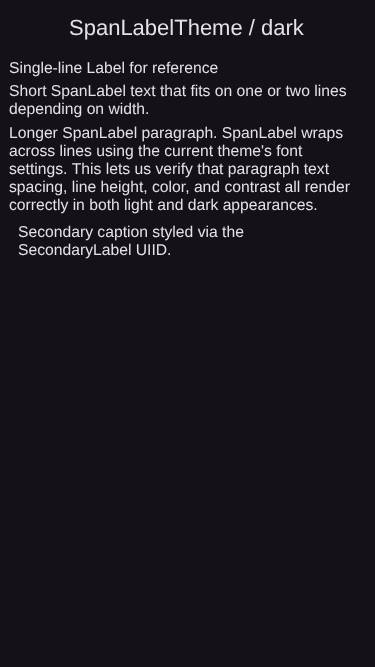

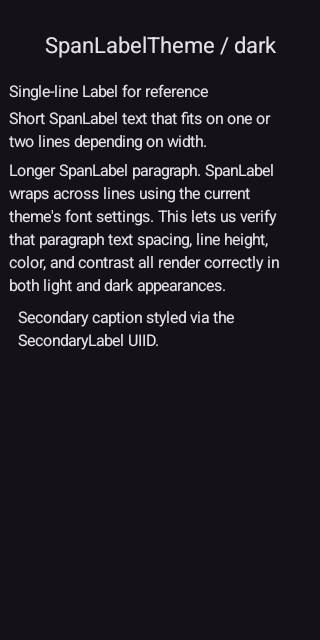

  • SpanLabelTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    SpanLabelTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SpanLabelTheme_dark.png in workflow artifacts.

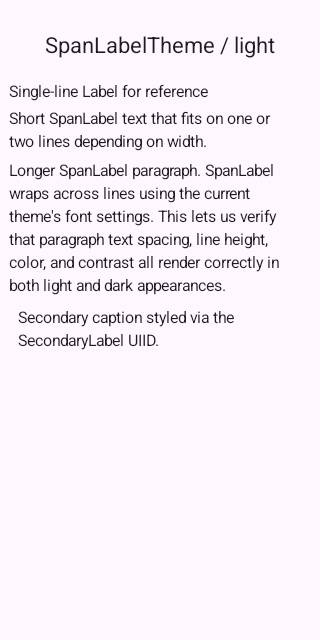

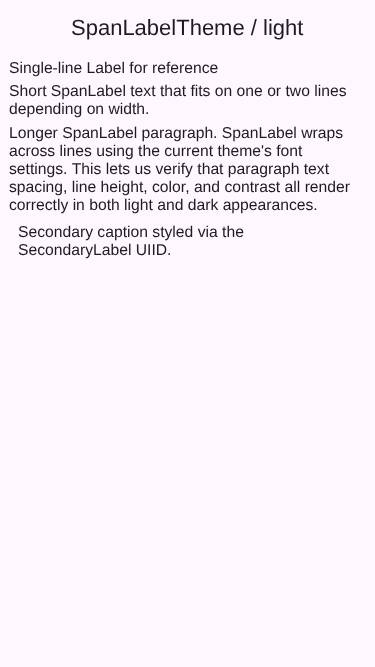

  • SpanLabelTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    SpanLabelTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SpanLabelTheme_light.png in workflow artifacts.

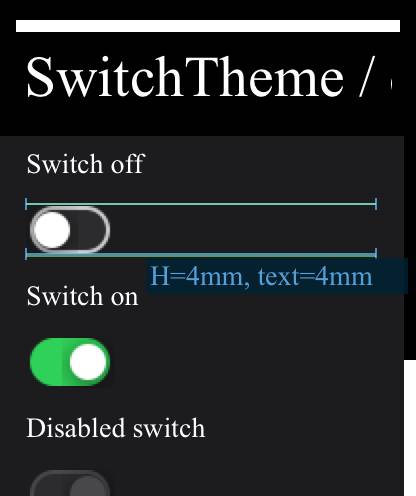

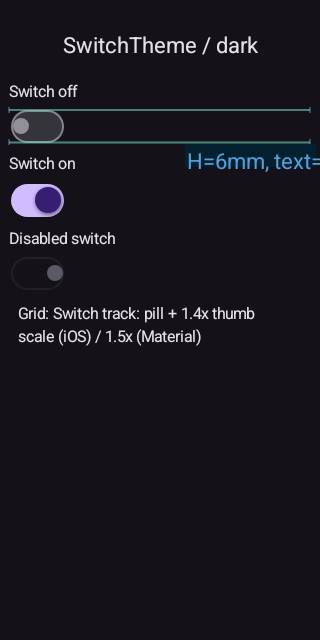

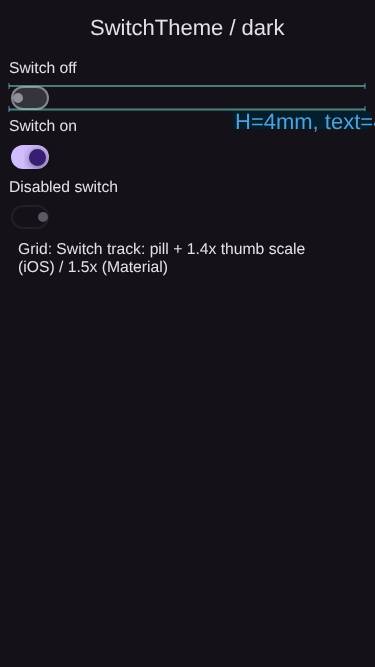

  • SwitchTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    SwitchTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SwitchTheme_dark.png in workflow artifacts.

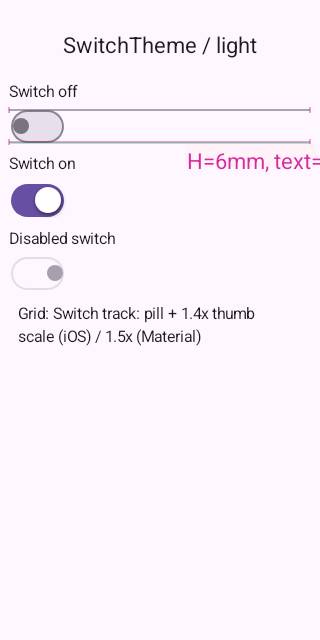

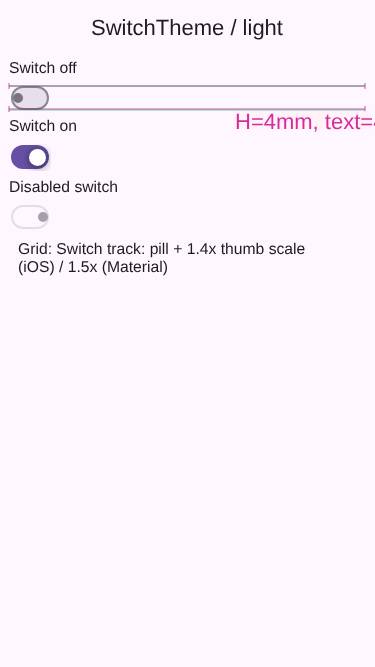

  • SwitchTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    SwitchTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SwitchTheme_light.png in workflow artifacts.

  • TabsTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    TabsTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TabsTheme_dark.png in workflow artifacts.

  • TabsTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    TabsTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TabsTheme_light.png in workflow artifacts.

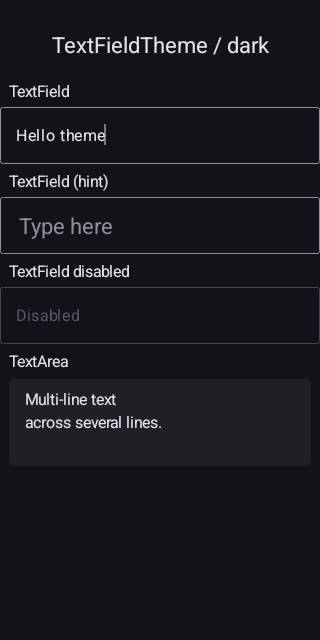

  • TextFieldTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    TextFieldTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TextFieldTheme_dark.png in workflow artifacts.

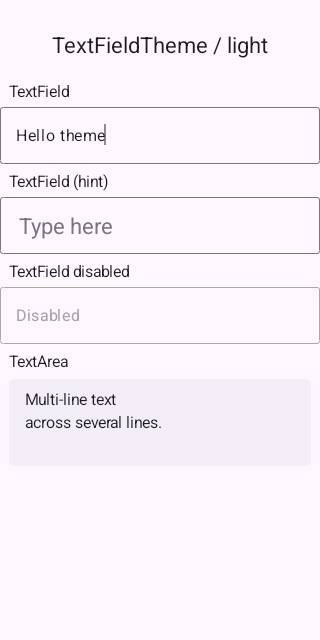

  • TextFieldTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    TextFieldTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TextFieldTheme_light.png in workflow artifacts.

  • ToolbarTheme_dark — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ToolbarTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ToolbarTheme_dark.png in workflow artifacts.

  • ToolbarTheme_light — updated screenshot. Screenshot differs (320x640 px, bit depth 8).

    ToolbarTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ToolbarTheme_light.png in workflow artifacts.

Native Android coverage

  • 📊 Line coverage: 14.46% (8850/61219 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
    • Other counters: instruction 11.74% (43658/372010), branch 5.19% (1815/34977), complexity 6.20% (2077/33516), method 10.72% (1679/15664), class 17.49% (388/2218)
    • Lowest covered classes
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6327 lines covered)
      • kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.ClassReader – 0.00% (0/1519 lines covered)
      • kotlin.collections.kotlin.collections.CollectionsKt___CollectionsKt – 0.00% (0/1148 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.MethodWriter – 0.00% (0/923 lines covered)
      • kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/730 lines covered)
      • kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/623 lines covered)
      • org.jacoco.agent.rt.internal_b6258fc.asm.org.jacoco.agent.rt.internal_b6258fc.asm.Frame – 0.00% (0/564 lines covered)
      • kotlin.collections.kotlin.collections.ArraysKt___ArraysJvmKt – 0.00% (0/495 lines covered)
      • kotlinx.coroutines.kotlinx.coroutines.JobSupport – 0.00% (0/423 lines covered)

Benchmark Results

Detailed Performance Metrics

Metric Duration
SIMD kernel backend scalar fallback (no native SIMD)
SIMD int-add (64K x300) java 205ms / native 125ms = 1.6x speedup
SIMD float-mul (64K x300) java 86ms / native 95ms = 0.9x speedup
SIMD kernel correctness PASS (native result == scalar reference)
Base64 payload size 8192 bytes
Base64 benchmark iterations 6000
Base64 SIMD byte path gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode 310.000 ms
Base64 CN1 decode 281.000 ms
Base64 native encode 802.000 ms
Base64 encode ratio (CN1/native) 0.387x (61.3% faster)
Base64 native decode 894.000 ms
Base64 decode ratio (CN1/native) 0.314x (68.6% faster)
Image encode benchmark status skipped (SIMD unsupported)

@shai-almog @claude
ci: fix build-test (ASCII), update javase goldens, seed fidelity goldens
993dc7e
- Switch.java: replace a non-ASCII U+2248 with ~ (Android port javac uses
  US-ASCII encoding and failed on it).
- scripts/javase/screenshots: refresh the 7 simulator goldens that shifted with
  the framework/theme changes (rendered on CI Linux to match the test env).
- scripts-fidelity.yml: TEMPORARY seed -- run the Android fidelity suite with
  FIDELITY_UPDATE_GOLDENS=1 + FIDELITY_UPDATE_BASELINE=1 so the native goldens
  and baseline are regenerated on CI's emulator density (the committed ones were
  rendered on a different local emulator, so 50/54 pairs "could not be compared").
  Reverted in a follow-up once the CI-density artifacts are committed.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Apple Watch (watchOS / Core Graphics)

Compared 211 screenshots: 206 matched, 5 updated.

  • CheckBoxRadioTheme_dark — updated screenshot. Screenshot differs (416x496 px, bit depth 8).

    CheckBoxRadioTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_dark.png in workflow artifacts.

  • CheckBoxRadioTheme_light — updated screenshot. Screenshot differs (416x496 px, bit depth 8).

    CheckBoxRadioTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_light.png in workflow artifacts.

  • ShowcaseTheme_dark — updated screenshot. Screenshot differs (416x496 px, bit depth 8).

    ShowcaseTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_dark.png in workflow artifacts.

  • ShowcaseTheme_light — updated screenshot. Screenshot differs (416x496 px, bit depth 8).

    ShowcaseTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_light.png in workflow artifacts.

  • SwitchTheme_dark — updated screenshot. Screenshot differs (416x496 px, bit depth 8).

    SwitchTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SwitchTheme_dark.png in workflow artifacts.

@shai-almog @claude
ci: commit CI-density Android goldens + baseline, drop seed flags
1c0a57d
The native goldens + ratchet baseline are now the ones the seed run regenerated
on CI's own emulator (e.g. Tabs 377x100 vs the local 1039x277), so the fidelity
gate compares like-for-like instead of failing 50/54 pairs on size mismatch.
Removes the temporary FIDELITY_UPDATE_* seed so the job is a real one-way ratchet
again. CI baseline overall fidelity: 96.2%.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Compared 133 screenshots: 133 matched.
✅ Native Apple TV (tvOS, Metal) screenshot tests passed.

@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Compared 131 screenshots: 131 matched.
✅ Native iOS screenshot tests passed.

Benchmark Results

  • VM Translation Time: 0 seconds
  • Compilation Time: 225 seconds

Build and Run Timing

Metric Duration
Simulator Boot 71000 ms
Simulator Boot (Run) 0 ms
App Install 12000 ms
App Launch 0 ms
Test Execution 421000 ms

Detailed Performance Metrics

Metric Duration
SIMD kernel backend SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300) java 289ms / native 3ms = 96.3x speedup
SIMD float-mul (64K x300) java 319ms / native 10ms = 31.9x speedup
SIMD kernel correctness PASS (native result == scalar reference)
Base64 payload size 8192 bytes
Base64 benchmark iterations 6000
Base64 SIMD byte path active (NEON-accelerated)
Base64 CN1 encode 323.000 ms
Base64 CN1 decode 233.000 ms
Base64 native encode 1055.000 ms
Base64 encode ratio (CN1/native) 0.306x (69.4% faster)
Base64 native decode 620.000 ms
Base64 decode ratio (CN1/native) 0.376x (62.4% faster)
Base64 SIMD encode 57.000 ms
Base64 encode ratio (SIMD/CN1) 0.176x (82.4% faster)
Base64 SIMD decode 49.000 ms
Base64 decode ratio (SIMD/CN1) 0.210x (79.0% faster)
Base64 encode ratio (SIMD/native) 0.054x (94.6% faster)
Base64 decode ratio (SIMD/native) 0.079x (92.1% faster)
Image encode benchmark iterations 100
Image createMask (SIMD off) 28.000 ms
Image createMask (SIMD on) 23.000 ms
Image createMask ratio (SIMD on/off) 0.821x (17.9% faster)
Image applyMask (SIMD off) 222.000 ms
Image applyMask (SIMD on) 167.000 ms
Image applyMask ratio (SIMD on/off) 0.752x (24.8% faster)
Image modifyAlpha (SIMD off) 254.000 ms
Image modifyAlpha (SIMD on) 166.000 ms
Image modifyAlpha ratio (SIMD on/off) 0.654x (34.6% faster)
Image modifyAlpha removeColor (SIMD off) 177.000 ms
Image modifyAlpha removeColor (SIMD on) 156.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off) 0.881x (11.9% faster)

@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

JavaScript port screenshot updates

Compared 128 screenshots: 96 matched, 32 updated.

  • ButtonTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ButtonTheme_dark.png in workflow artifacts.

  • ButtonTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ButtonTheme_light.png in workflow artifacts.

  • ChatInput_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ChatInput_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatInput_dark.png in workflow artifacts.

  • ChatInput_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ChatInput_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatInput_light.png in workflow artifacts.

  • ChatView_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ChatView_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatView_dark.png in workflow artifacts.

  • ChatView_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ChatView_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ChatView_light.png in workflow artifacts.

  • CheckBoxRadioTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    CheckBoxRadioTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_dark.png in workflow artifacts.

  • CheckBoxRadioTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    CheckBoxRadioTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as CheckBoxRadioTheme_light.png in workflow artifacts.

  • DialogTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    DialogTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as DialogTheme_dark.png in workflow artifacts.

  • DialogTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    DialogTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as DialogTheme_light.png in workflow artifacts.

  • FloatingActionButtonTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    FloatingActionButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as FloatingActionButtonTheme_dark.png in workflow artifacts.

  • FloatingActionButtonTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    FloatingActionButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as FloatingActionButtonTheme_light.png in workflow artifacts.

  • ListTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ListTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ListTheme_dark.png in workflow artifacts.

  • ListTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ListTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ListTheme_light.png in workflow artifacts.

  • MultiButtonTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    MultiButtonTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as MultiButtonTheme_dark.png in workflow artifacts.

  • MultiButtonTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    MultiButtonTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as MultiButtonTheme_light.png in workflow artifacts.

  • PaletteOverrideTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    PaletteOverrideTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PaletteOverrideTheme_dark.png in workflow artifacts.

  • PaletteOverrideTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    PaletteOverrideTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PaletteOverrideTheme_light.png in workflow artifacts.

  • PickerTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    PickerTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PickerTheme_dark.png in workflow artifacts.

  • PickerTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    PickerTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as PickerTheme_light.png in workflow artifacts.

  • ShowcaseTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ShowcaseTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_dark.png in workflow artifacts.

  • ShowcaseTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ShowcaseTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ShowcaseTheme_light.png in workflow artifacts.

  • SpanLabelTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    SpanLabelTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SpanLabelTheme_dark.png in workflow artifacts.

  • SpanLabelTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    SpanLabelTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SpanLabelTheme_light.png in workflow artifacts.

  • SwitchTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    SwitchTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SwitchTheme_dark.png in workflow artifacts.

  • SwitchTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    SwitchTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as SwitchTheme_light.png in workflow artifacts.

  • TabsTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    TabsTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TabsTheme_dark.png in workflow artifacts.

  • TabsTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    TabsTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TabsTheme_light.png in workflow artifacts.

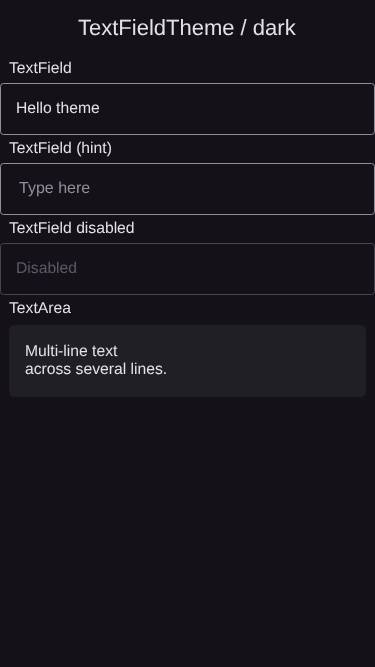

  • TextFieldTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    TextFieldTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TextFieldTheme_dark.png in workflow artifacts.

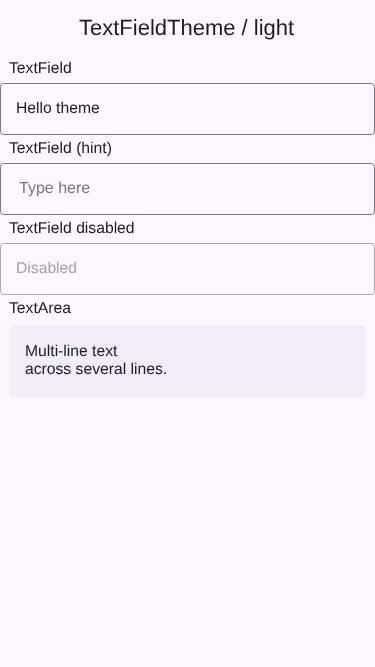

  • TextFieldTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    TextFieldTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as TextFieldTheme_light.png in workflow artifacts.

  • ToolbarTheme_dark — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ToolbarTheme_dark
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ToolbarTheme_dark.png in workflow artifacts.

  • ToolbarTheme_light — updated screenshot. Screenshot differs (375x667 px, bit depth 8).

    ToolbarTheme_light
    Preview info: JPEG preview quality 70; JPEG preview quality 70.
    Full-resolution PNG saved as ToolbarTheme_light.png in workflow artifacts.

@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Compared 134 screenshots: 134 matched.
✅ Native Mac screenshot tests passed.

Benchmark Results

  • VM Translation Time: 0 seconds
  • Compilation Time: 217 seconds

Detailed Performance Metrics

Metric Duration
SIMD kernel backend SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300) java 56ms / native 3ms = 18.6x speedup
SIMD float-mul (64K x300) java 54ms / native 3ms = 18.0x speedup
SIMD kernel correctness PASS (native result == scalar reference)
Base64 payload size 8192 bytes
Base64 benchmark iterations 6000
Base64 SIMD byte path active (NEON-accelerated)
Base64 CN1 encode 377.000 ms
Base64 CN1 decode 290.000 ms
Base64 native encode 1206.000 ms
Base64 encode ratio (CN1/native) 0.313x (68.7% faster)
Base64 native decode 863.000 ms
Base64 decode ratio (CN1/native) 0.336x (66.4% faster)
Base64 SIMD encode 69.000 ms
Base64 encode ratio (SIMD/CN1) 0.183x (81.7% faster)
Base64 SIMD decode 62.000 ms
Base64 decode ratio (SIMD/CN1) 0.214x (78.6% faster)
Base64 encode ratio (SIMD/native) 0.057x (94.3% faster)
Base64 decode ratio (SIMD/native) 0.072x (92.8% faster)
Image encode benchmark iterations 100
Image createMask (SIMD off) 34.000 ms
Image createMask (SIMD on) 31.000 ms
Image createMask ratio (SIMD on/off) 0.912x (8.8% faster)
Image applyMask (SIMD off) 237.000 ms
Image applyMask (SIMD on) 248.000 ms
Image applyMask ratio (SIMD on/off) 1.046x (4.6% slower)
Image modifyAlpha (SIMD off) 230.000 ms
Image modifyAlpha (SIMD on) 181.000 ms
Image modifyAlpha ratio (SIMD on/off) 0.787x (21.3% faster)
Image modifyAlpha removeColor (SIMD off) 6906.000 ms
Image modifyAlpha removeColor (SIMD on) 194.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off) 0.028x (97.2% faster)

shai-almog and others added 2 commits June 24, 2026 07:32
@shai-almog @claude
iOS native render fix (MRC bugs) + better fidelity report stats
8f954b4
iOS fidelity native references now render (48 delivered, was 0). The earlier
"ParparVM can't render UIKit in a native method" conclusion was wrong: it was
three mundane MRC (non-ARC) memory bugs in NativeWidgetFactoryImpl.m --

1. knownKind: cached an AUTORELEASED +[NSSet setWithObjects:] in a static, which
   dangled once the autorelease pool drained between native calls; the 2nd call
   derefed freed memory. ParparVM turns that EXC_BAD_ACCESS into a bogus Java NPE
   (which read as "buildAndRender NPEs"). Fixed: -[alloc initWithObjects:] (+1).
2. The rendered NSData was autoreleased and built on the main queue (UIKit layout
   -- e.g. SF-Symbol buttons -- hangs off-main, so the build is dispatch_sync'd to
   main); when dispatch_sync returned, main's pool drained and freed it before the
   EDT's writeToFile. Fixed: -retain it across the boundary, -release after.
3. (UIKit build moved to the main thread to avoid the off-main layout hang.)

Report (RenderFidelityReport): lead with median / worst-pair / 25th-percentile /
distribution buckets instead of a single misleading mean; add a per-pair
percentage table (Fidelity, SSIM, mean-delta, delta-vs-baseline) sorted worst
first; list unscored pairs explicitly; render the side-by-side cards for every
pair worst-first.

Workflow: drop continue-on-error on the iOS job (no longer a blocker); reseed
per-environment goldens (FIDELITY_UPDATE_GOLDENS) while the committed baseline
remains the portable ratchet floor.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog @claude
iOS fidelity: real native-widget screenshots from a standalone native…
125623a
… app

The off-screen UIKit factory render was bunk: it rasterized DETACHED widgets at
scale=1.0, so a 30pt button was 30px inside a 1087px tile (tiny, wrong size), and
UINavigationBar/UITabBar rendered blank without a window. Replaced it for iOS with
the approach Shai asked for:

- scripts/fidelity-app/ios-native-ref/NativeRef.swift: a standalone native iOS app
  that lays each reference UIKit widget out in a REAL UIWindow and captures it with
  drawHierarchy(afterScreenUpdates:) -- so nav/tab bars render correctly -- at CN1's
  pixel density (so the PNG overlays the CN1 render 1:1, no scaling). Built directly
  with swiftc (no Xcode project) by scripts/build-ios-native-ref.sh, which runs it on
  the simulator and copies the PNGs into the committed iOS goldens.
- run-ios-fidelity-tests.sh: iOS now compares the CN1 render against these COMMITTED
  goldens (generated offline, not same-run) instead of the broken factory native.
- ProcessScreenshots: tolerate a few px of cross-environment rounding (golden 1088 vs
  CN1 1087) by cropping both to their common top-left region before diffing -- a true
  1:1 overlay, never a scale.

Result: all 50 iOS pairs now compare against real, correctly-sized native widgets
(Toolbar was 0% blank -> a real centred-vs-left-aligned title diff). Seeded the iOS
ratchet baseline (mean 62.3%); the low scores are the genuine untuned-iOSModern-theme
gaps to drive up next.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog

shai-almog commented Jun 24, 2026 •
edited
Loading

Copy link
Copy Markdown
Collaborator Author

Compared 135 screenshots: 135 matched.
✅ Native iOS Metal screenshot tests passed.

Benchmark Results

  • VM Translation Time: 0 seconds
  • Compilation Time: 291 seconds

Build and Run Timing

Metric Duration
Simulator Boot 104000 ms
Simulator Boot (Run) 0 ms
App Install 11000 ms
App Launch 4000 ms
Test Execution 300000 ms

Detailed Performance Metrics

Metric Duration
SIMD kernel backend SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300) java 62ms / native 3ms = 20.6x speedup
SIMD float-mul (64K x300) java 69ms / native 4ms = 17.2x speedup
SIMD kernel correctness PASS (native result == scalar reference)
Base64 payload size 8192 bytes
Base64 benchmark iterations 6000
Base64 SIMD byte path active (NEON-accelerated)
Base64 CN1 encode 726.000 ms
Base64 CN1 decode 206.000 ms
Base64 native encode 616.000 ms
Base64 encode ratio (CN1/native) 1.179x (17.9% slower)
Base64 native decode 385.000 ms
Base64 decode ratio (CN1/native) 0.535x (46.5% faster)
Base64 SIMD encode 58.000 ms
Base64 encode ratio (SIMD/CN1) 0.080x (92.0% faster)
Base64 SIMD decode 72.000 ms
Base64 decode ratio (SIMD/CN1) 0.350x (65.0% faster)
Base64 encode ratio (SIMD/native) 0.094x (90.6% faster)
Base64 decode ratio (SIMD/native) 0.187x (81.3% faster)
Image encode benchmark iterations 100
Image createMask (SIMD off) 19.000 ms
Image createMask (SIMD on) 2.000 ms
Image createMask ratio (SIMD on/off) 0.105x (89.5% faster)
Image applyMask (SIMD off) 70.000 ms
Image applyMask (SIMD on) 31.000 ms
Image applyMask ratio (SIMD on/off) 0.443x (55.7% faster)
Image modifyAlpha (SIMD off) 82.000 ms
Image modifyAlpha (SIMD on) 30.000 ms
Image modifyAlpha ratio (SIMD on/off) 0.366x (63.4% faster)
Image modifyAlpha removeColor (SIMD off) 76.000 ms
Image modifyAlpha removeColor (SIMD on) 30.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off) 0.395x (60.5% faster)

shai-almog and others added 2 commits June 24, 2026 09:03
@shai-almog @claude
fidelity: crop both renders to common region instead of failing on size
a146833
The native and CN1 tiles both anchor the widget top-left, but their pixel sizes
can diverge -- a few px of cross-environment rounding (iOS offline goldens), or a
larger native-vs-CN1 tile-geometry gap that flakes between Android emulator runs
(e.g. CN1 320 vs native 377). Failing those as "size_mismatch" broke the gate.
Now both are cropped to their common top-left region and overlaid 1:1 (never a
scale); the structural metric still crops to each widget's content bbox, so an
honest extent difference scores lower rather than erroring. Only a degenerate
overlap (<8px) is an error.

TEMPORARY: FIDELITY_UPDATE_BASELINE=1 on both run steps to reseed the ratchet
baselines on CI under the new comparison (reverted once the baselines are
committed).

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
@shai-almog @claude
fidelity metric: gate on structural salience, not just mean colour delta
b448f7b
The old score was the mean colour agreement over all widget-content pixels, so a
large flat region that happened to match -- e.g. a dark nav-bar fill against a
dark tile -- could carry the score into the high 80s even when the actual widget
(the title) was centred in one render and left-aligned at a totally different
font size in the other. "Mostly got points for being black."

Now fidelity = min(fillSim, structSim):
  - fillSim   = mean colour agreement over content pixels (the old term; catches
                wrong fill colours).
  - structSim = the same agreement WEIGHTED BY local-gradient salience SQUARED, so
                flat fills count for ~nothing and the strongest edges -- glyph
                strokes, crisp outlines, separators -- dominate. A mis-placed or
                mis-sized title lands its strokes on the other render's flat fill,
                collapsing this term.
A widget must now agree in BOTH fill AND structure/placement. Effect on the iOS
Toolbar that triggered this: 89.3% -> ~59% (dark) / 36% (light), matching the
independent SSIM (~56%), while genuinely-similar widgets (an off switch, disabled
buttons) stay in the mid-80s. This is stricter for Android too; the CI seed run
reseeds both ratchet baselines under it.

Co-Authored-By: Claude Opus 4.8 (1M context) <noreply@anthropic.com>
Sign up for free to join this conversation on GitHub. Already have an account? Sign in to comment

Reviewers

No reviews

Assignees

No one assigned

Labels

None yet

Projects

None yet

Milestone

No milestone

Development

Successfully merging this pull request may close these issues.

1 participant

@shai-almog
