Problem

The TUI session list is easy to scan — aligned names, right-aligned harness labels, a clear indent ladder for project/session/subagent/fork structure. The web UI, although structurally similar, was much harder to read:

  • Rows were two lines tall (harness label under the name), so the list was tall and noisy.
  • Grouped members indented by only 2px (visually flat); subagents jumped a fixed 40px regardless of parent depth.
  • "N archived" rows didn't line up with the rows they summarize, so it was unclear whether they belonged to the session above or to the group.
  • Forks rendered as flat top-level rows with no lineage marker — unlike the TUI, which nests them under their parent per spec 0081 ("a fork renders as an indented child row under its parent … never as its own top-level row, and a parent row badges its live fork count").

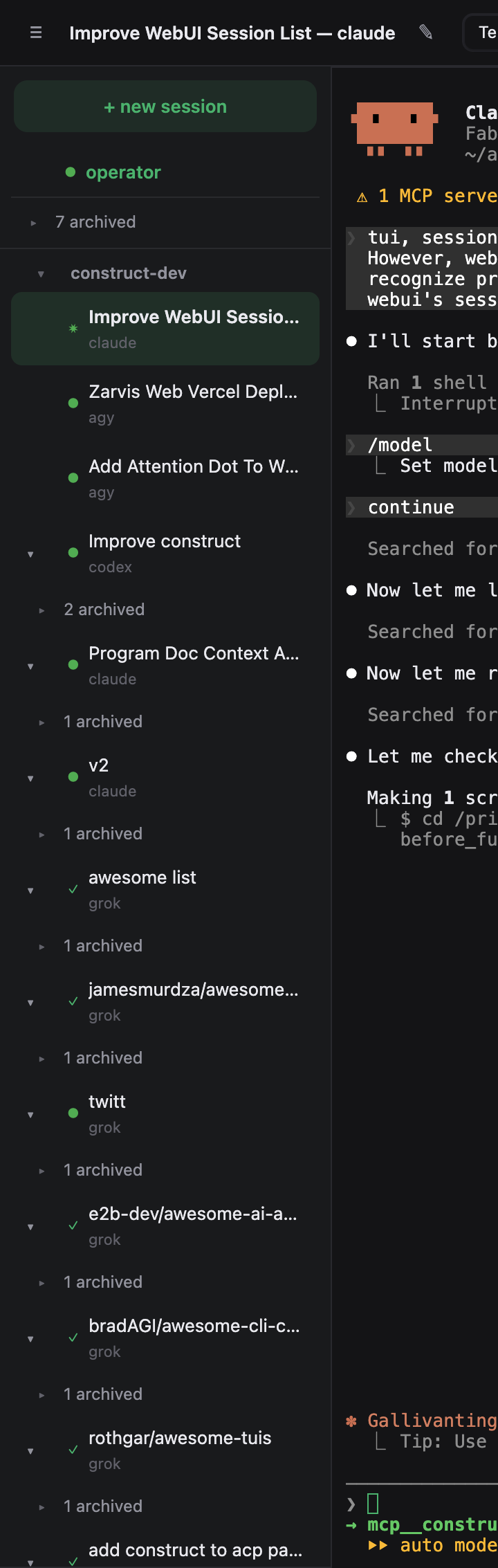

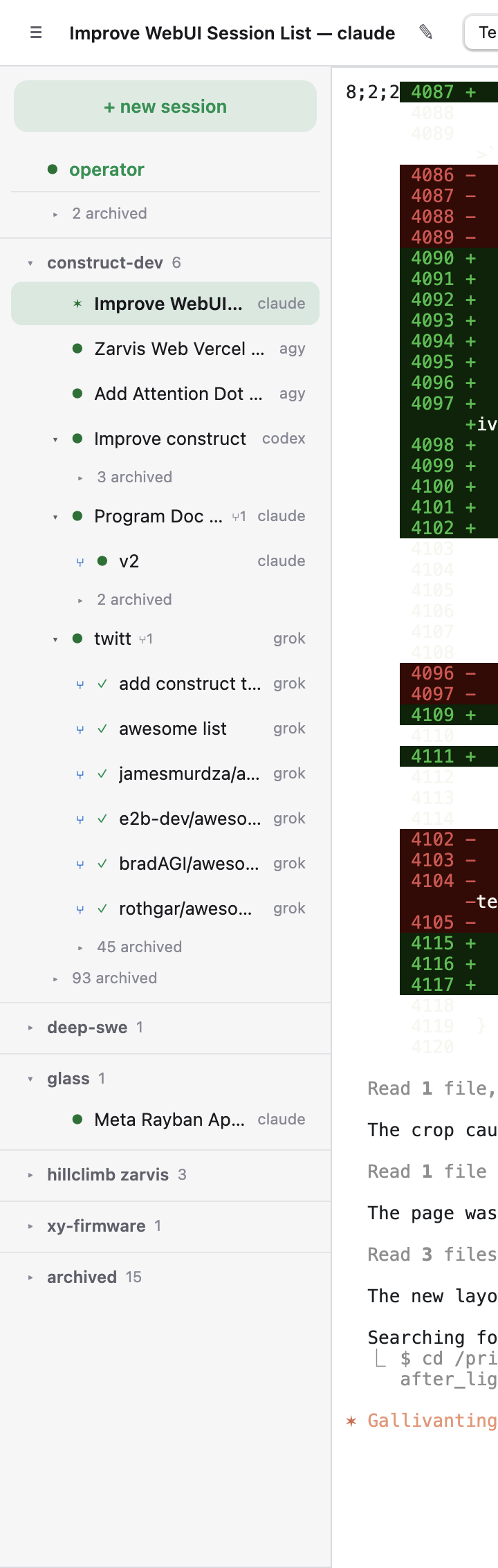

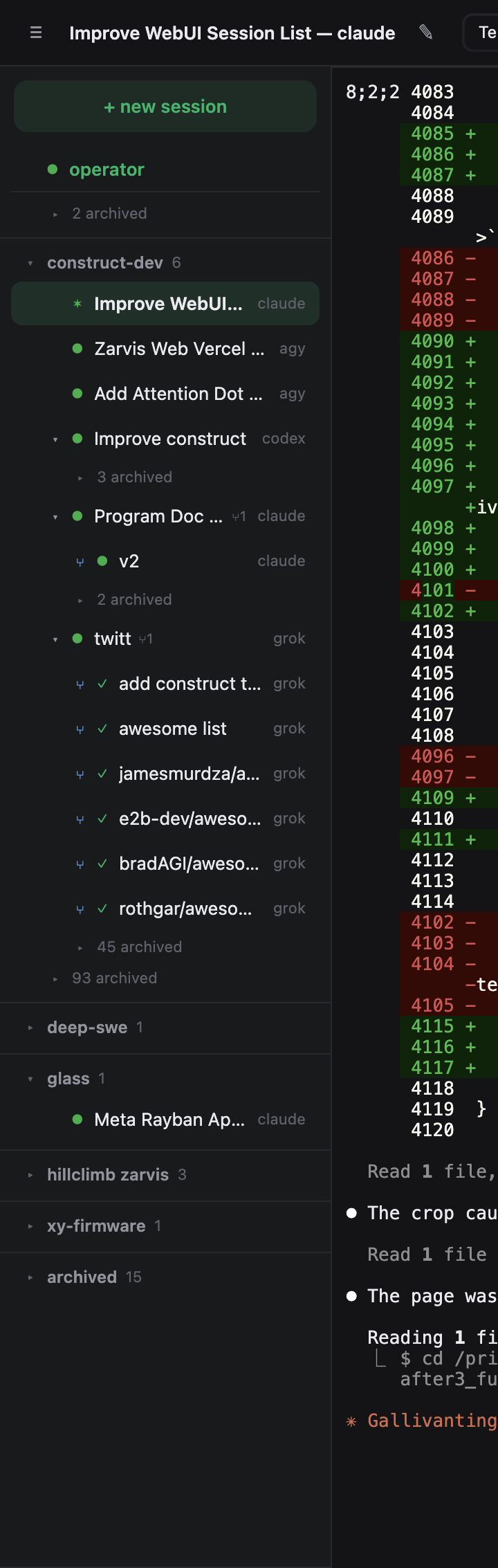

before (dark) after (dark) after (light)
before after dark after light

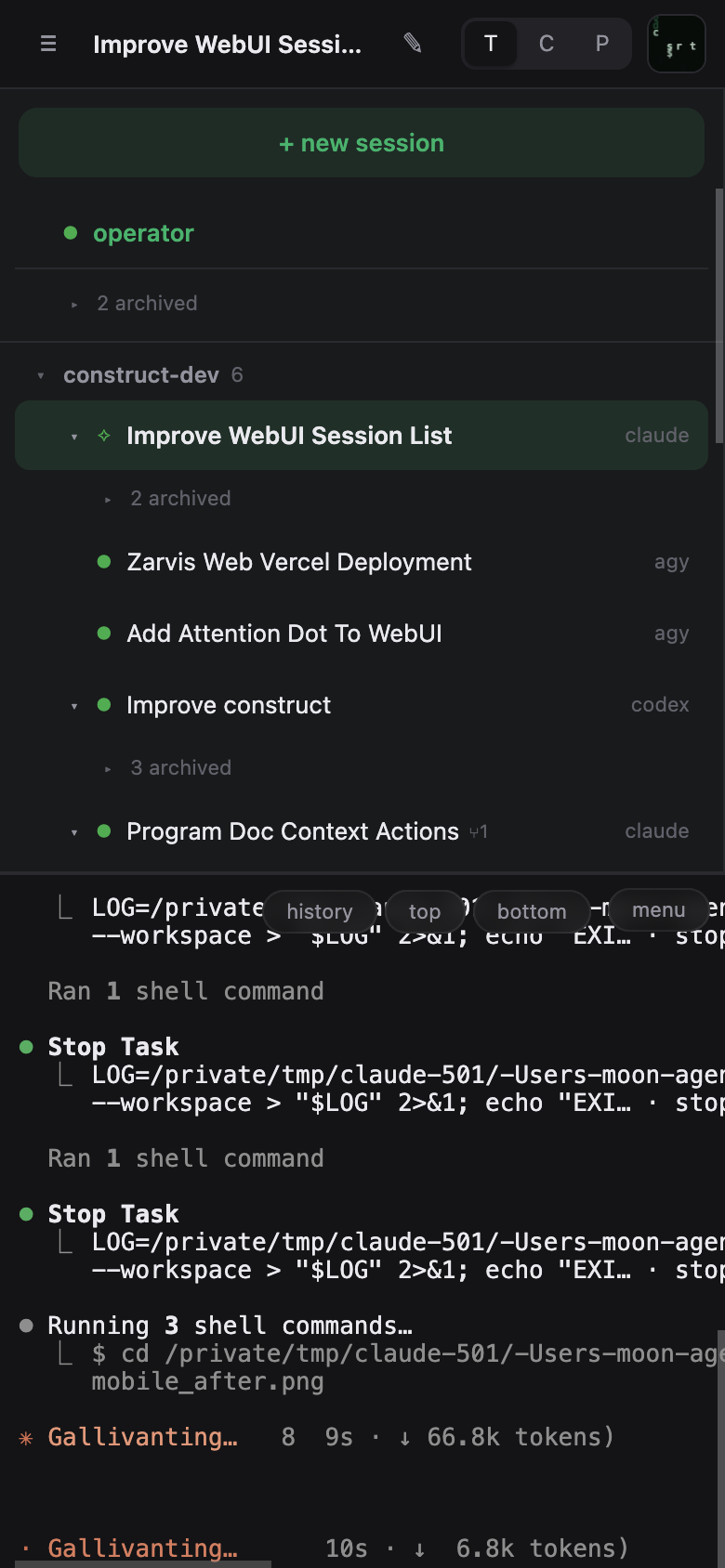

Phone viewport (390px)

mobile

Structure — orderedItems() now mirrors the TUI's list_items

  • Forks nest under their fork parent, recursively, flat at one child level (a fork of a fork sits at the same indent, matching the TUI convention). The parent badges its live fork count (⑂N). A fork whose parent summary is gone falls back to a top-level row instead of disappearing.
  • A parent's archived forks — any generation — fold into the same "N archived" row as its archived subagents (spec 0081), expanded to reveal each as a selectable row.
  • Group headers show the active member count, like the TUI's ▾ name (n).

Presentation

  • Single-line rows: fixed [disclosure][status] gutter → name → trailing markers (fork count, pin ★, needs-attention ●) → harness label right-aligned in muted small type. Names at one depth share a left edge; a long name truncates before the harness label does.
  • Depth-classed indent ladder (18px/level) so a child's status glyph sits under its parent's name — the same relationship the TUI draws.
  • A fork's ⑂ marker occupies the gutter cell a disclosure triangle would, so fork and subagent names align.
  • Archived rows indent to the depth of the rows they reveal; smaller, fainter type keeps them out of the way.
  • The needs-attention dot moves from before the name to trailing it, matching the TUI (spec 0054: "a blue dot trailing the title") and keeping the name column flush.
  • Compact rows on desktop; taller touch targets on ≤720px viewports.

All row classes/datasets the delegated click handler, drag-reorder, and activity-spinner refresh rely on (.item[data-id], .disclosure.can-toggle[data-parent-id], .archived-row[data-archived-section], .group-header[data-group-id], .state[data-session-id]) are unchanged.

Testing

  • cargo test --workspace: 1,591 tests across 37 binaries, all green (includes web_smoke e2e).
  • Verified live against a running daemon via webui hot-reload: dark/light/matrix themes, disclosure collapse/expand (rows hide/show), archived-row toggle, fork-row selection, phone viewport.

The two pr-media commits exist only to host the screenshots above (added then removed; the pinned raw URLs stay alive via the PR ref).

🤖 Generated with Claude Code

The web UI session list was hard to scan: rows were two lines tall
(harness label under the name), grouped members indented by only 2px,
subagents by a fixed 40px regardless of parent depth, archived rows
did not line up with the rows they summarize, and forks rendered as
flat top-level rows with no lineage marker — unlike the TUI, which
nests them under their parent (spec 0081).

Structure (mirrors the TUI's list):
- Forks nest as child rows under their fork parent, recursively and
  flat at one child level; the parent badges its live fork count (⑂N).
  A fork whose parent summary is gone falls back to top-level instead
  of disappearing.
- A parent's archived forks (any generation) fold into the same
  "N archived" disclosure row as its archived subagents.
- Group headers show the active member count.

Presentation:
- Single-line rows: fixed [disclosure][status] gutter, name, trailing
  markers (fork count, pin star, needs-attention dot), harness label
  right-aligned in muted small type — names on one left edge per depth.
- Depth-classed indent ladder (18px per tree level) so a child's
  status glyph sits under its parent's name, like the TUI.
- A fork's ⑂ marker occupies the gutter cell a disclosure would, so
  fork and subagent names align.
- Archived rows indent to the depth of the rows they reveal.
- Compact rows on desktop; taller touch targets restored on phones.
