ProjectFlow

Production-ready Project & Task Management Platform

Plan less. Ship more. Together.

🚀 30+ API Endpoints 🔐 OAuth + JWT Auth 📊 4 Analytics Modules 👥 8-Level RBAC 📱 PWA Ready ⚡ Deno Deploy

Live Demo API Docs Deno Fresh Hono Prisma MongoDB TypeScript PWA License PRs Welcome


Live Demo · API Docs · Report Bug · Request Feature


📊 Project Metrics

Metric Value
API Endpoints 30+
Role Levels 8 (4 global + 4 per-project)
Authentication Methods 3 (Email, Google OAuth, GitHub OAuth)
Analytics Modules 4 (Dashboard, Per-Project, Portfolio, Health)
Database Collections 8
Frontend Islands 44
Routes 15
PWA Support Yes
Database MongoDB Atlas
Deployment Deno Deploy (production)

🎥 Product Walkthrough

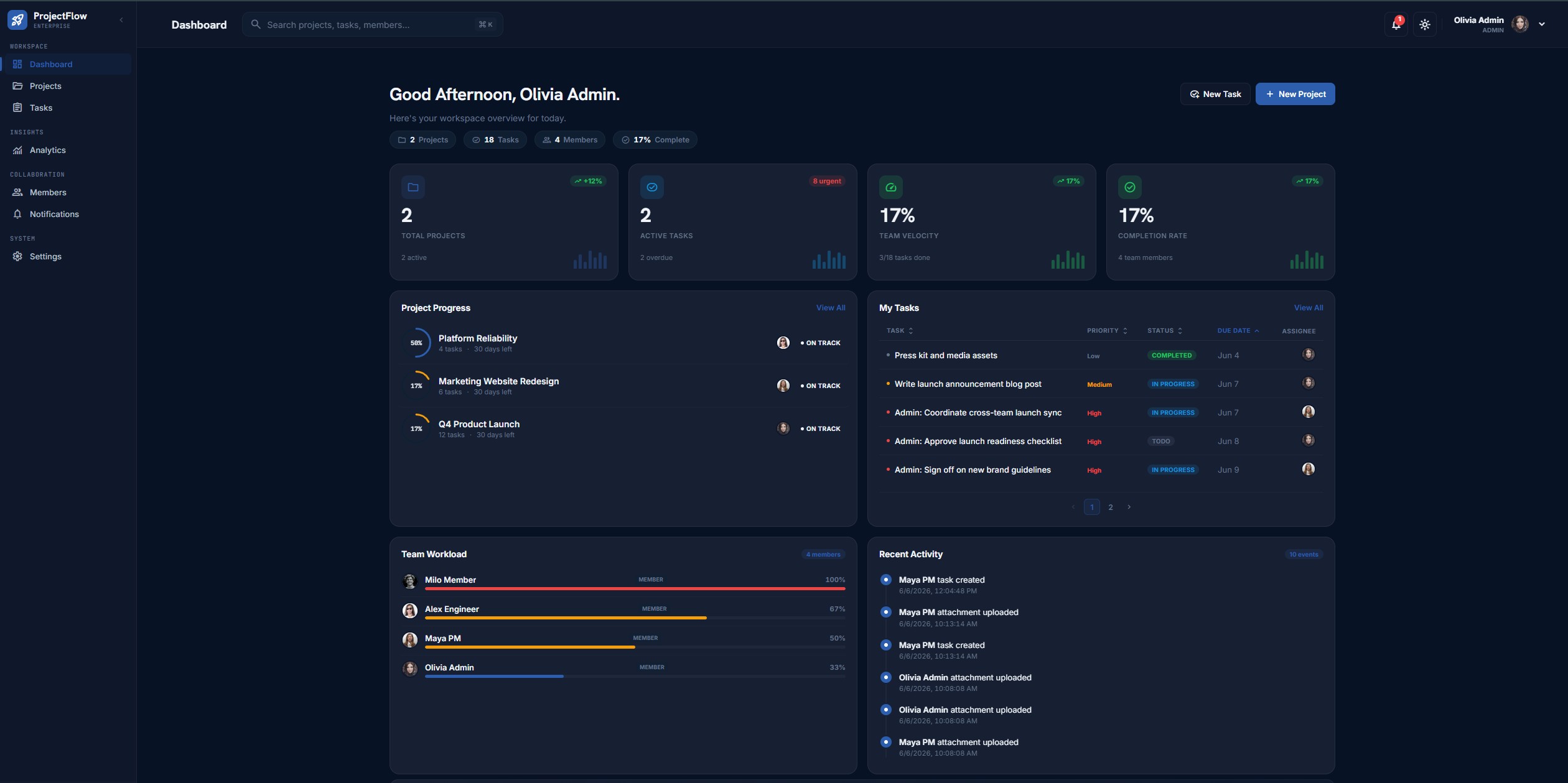

ProjectFlow Product Walkthrough

▶️ Click the thumbnail to watch on YouTube (opens in new tab)

🏃 Quick Preview

Jump straight into the live app at projectflow.engsiam.deno.net using any of these demo accounts:

Email Password Role What you can explore
admin@projectflow.dev Admin#12345 ADMIN Full access — create/delete projects, manage members, all analytics
olivia@projectflow.dev Olivia#12345 PROJECT_MANAGER Create projects, invite members, manage tasks
liam@projectflow.dev Liam#12345 TEAM_MEMBER Kanban board, comments, file uploads
noah@projectflow.dev Noah#12345 VIEWER Read-only: browse projects, tasks, charts, reports

🚀 Why ProjectFlow?

Feature ProjectFlow Typical CRUD App
Authentication & JWT Sessions
Kanban Workflow (Drag & Drop)
Analytics Dashboard
Project Health Intelligence (0–100)
Portfolio Risk Matrix
Workload Balancing
Activity Heatmap (90-day)
Gantt Timeline
OAuth Login (Google + GitHub)
PWA Support
Two-Layer RBAC (8 roles)
PDF Report Export
Predictive Completion Forecasting
Real-time Notifications
Global Command Palette (Cmd+K)
Deno Deploy Production
Swagger/OpenAPI Documentation
CSV Task Export

👨‍💼 Why This Project Stands Out

This repository demonstrates full-stack engineering proficiency across the entire software development lifecycle — from database schema design to production deployment on a serverless edge runtime.

Full-Stack Architecture

The project is split into two independently deployable Deno applications: a Hono REST API and a Fresh + Preact frontend. The backend follows a clean layered architecture (routes → controllers → services → Prisma ORM → MongoDB Atlas) with Zod-validated OpenAPI 3 specs generated directly from route definitions. The frontend uses Fresh's island architecture — interactive Preact components hydrate only where needed, delivering sub-100ms page loads without a bundler.

Production-Grade Authentication

Implementing JWT access/refresh token rotation with bcrypt password hashing, Google & GitHub OAuth 2.0, IP-based rate limiting on auth endpoints, and a two-layer RBAC system (4 global roles × 4 per-project roles = 8 distinct permission levels) demonstrates strong security engineering.

Database Design

The MongoDB schema covers 8 collections with proper indexing, foreign key relationships via Prisma, and a document model designed for the task management domain. The health snapshot collection stores deterministic score computations alongside risk factors, recommendations, and historical trend data — enabling the predictive analytics engine without external services.

Enterprise Analytics Suite

The analytics system spans four levels: workspace dashboard (aggregate KPIs, trends, team workload), per-project analytics (member productivity, task distribution), portfolio intelligence (cross-project health comparison, risk matrix), and project health scoring (0–100 weighted multi-signal algorithm with completion forecasting). This demonstrates the ability to design, implement, and visualize complex data pipelines.

Frontend Engineering

The UI uses CSS custom properties for theming (no Tailwind dependency), responsive grid layouts, SVG-powered progress rings and donut gauges, Recharts for analytics, and a command palette (Cmd+K) for instant project/task/member search. The PDF report feature uses native window.print() with @media print CSS — a zero-dependency approach to document generation.

API Documentation

Every backend route is documented via OpenAPI 3 with Zod validation schemas, exposed through Swagger UI at /docs and machine-readable JSON at /openapi.json. This shows commitment to developer experience and API-first design.

Production Deployment

The application is deployed and live on Deno Deploy's global edge network, with health checks at /health and /readyz, automated Prisma client generation in CI, and a documented cold-start verification pipeline.


Key Features

  • Authentication & Authorization — JWT access/refresh token rotation, email/password signup, Google & GitHub OAuth 2.0
  • Project Management — Create, edit, archive, restore, with start/deadline dates, per-project colors, status workflow (Active / On Hold / Completed / Archived)
  • Task Management — Three-column Kanban (To Do / In Progress / Completed), priority levels, assignees, due dates, labels, threaded comments, file attachments, CSV export
  • Role-Based Access Control — Two-layer RBAC: global roles (ADMIN / PROJECT_MANAGER / TEAM_MEMBER / VIEWER) + per-project roles (OWNER / PROJECT_MANAGER / MEMBER / VIEWER)
  • Analytics Dashboard — Workspace KPIs, task status/priority mix, 30-day trends, per-project analytics, member workload, productivity comparisons
  • Project Health Intelligence — Deterministic 0–100 health score blended from 5 signals (overdue tasks, velocity, deadline proximity, engagement, workload balance); risk classification (ON_TRACK / AT_RISK / CRITICAL); completion forecasting; historical trends
  • Executive Command Center — Dashboard hero with workspace health score ring, project/task/completion/at-risk stats, weekly trend indicator
  • Portfolio Risk Matrix/portfolio page with health score overview, risk matrix table, portfolio insights cards, expandable per-project health intelligence
  • Gantt Timeline — Project Detail Timeline tab with week-header rows, colored bars by status, overdue markers, today line
  • Activity Heatmap — GitHub-style 90-day contribution grid with 5-level intensity coloring
  • Workload Balancer — Team workload analysis with balanced/overloaded/underutilized stats, bar chart, deterministic redistribution recommendations
  • Insights Assistant — Rule-based recommendations engine for overdue tasks, overloaded members, low velocity, unassigned tasks, engagement gaps
  • PDF Report Export — Zero-dependency print-to-PDF via window.print() with @media print CSS, accessible from Project Detail
  • Real-time Notifications — In-app notification center for task assignments, status changes, mentions
  • Global Command Palette — Cmd+K / Ctrl+K search for projects, tasks, and members
  • Mobile-first Responsive UI — Fully responsive layouts, touch-friendly, PWA installable on iOS and Android

🏗️ System Design Overview

The frontend-backend split maps to two independent Deno Deploy projects, each deployable with zero shared infrastructure.

Layer Stack Key Design Decision
UI Fresh islands + CSS custom properties No bundler — island hydration ships JS only for interactive components
API Hono + Zod + OpenAPI Validation schemas auto-generate OpenAPI 3 docs; invalid requests rejected at route layer
DB MongoDB via Prisma ORM Document model nests comments/attachments under tasks; typed schema prevents runtime drift
Auth JWT rotation + OAuth 2.0 Stateless tokens scale horizontally; OAuth delegates credential security to providers
Health Deterministic rule engine Reproducible, auditable scores — zero external API dependency

Architecture

flowchart TD
    A["Fresh Frontend<br/>(Preact Islands)"]
    B["Hono API<br/>(Deno 2.x)"]
    C["Authentication<br/>(JWT + OAuth)"]
    D["Project Service"]
    E["Task Service"]
    F["Health Engine"]
    G["(MongoDB Atlas)"]

    A --> B
    B --> C
    B --> D
    B --> E
    B --> F
    C --> G
    D --> G
    E --> G
    F --> G
Loading

Database Schema

erDiagram
    User ||--o{ Project : owns
    User ||--o{ ProjectMember : member-of
    User ||--o{ Task : assigned
    User ||--o{ Comment : writes
    User ||--o{ Notification : receives
    Project ||--o{ Task : contains
    Project ||--o{ ProjectMember : has
    Project ||--o{ HealthSnapshot : evaluated
    Task ||--o{ Comment : has
    Task ||--o{ Attachment : has
    Task ||--o{ ActivityLog : generates

    User {
        string id PK
        string email
        string name
        string password
        string role "ADMIN|PROJECT_MANAGER|TEAM_MEMBER|VIEWER"
        string avatar
        string googleId
        string githubId
        datetime createdAt
        datetime updatedAt
    }

    Project {
        string id PK
        string name
        string description
        string color
        string status "ACTIVE|ON_HOLD|COMPLETED|ARCHIVED"
        string ownerId FK
        datetime startDate
        datetime deadline
        datetime createdAt
    }

    Task {
        string id PK
        string title
        string description
        string status "TODO|IN_PROGRESS|COMPLETED"
        string priority "LOW|MEDIUM|HIGH"
        string projectId FK
        string assigneeId FK
        datetime dueDate
        datetime createdAt
        int sortOrder
    }

    ProjectMember {
        string id PK
        string projectId FK
        string userId FK
        string role "OWNER|PROJECT_MANAGER|MEMBER|VIEWER"
        datetime joinedAt
    }

    Comment {
        string id PK
        string content
        string taskId FK
        string authorId FK
        datetime createdAt
    }

    Notification {
        string id PK
        string userId FK
        string type
        string message
        string link
        boolean read
        datetime createdAt
    }

    Attachment {
        string id PK
        string filename
        string url
        string taskId FK
        string uploaderId FK
        datetime createdAt
    }

    HealthSnapshot {
        string id PK
        string projectId FK
        int score
        string riskLevel "ON_TRACK|AT_RISK|CRITICAL"
        json riskFactors
        json recommendations
        json breakdown
        int trend
        datetime createdAt
    }

    ActivityLog {
        string id PK
        string actorId FK
        string projectId FK
        string taskId FK
        string action
        json metadata
        datetime createdAt
    }
Loading

Screenshots

Authentication

Sign In Home / Landing
Sign In Home / Landing

Dashboard

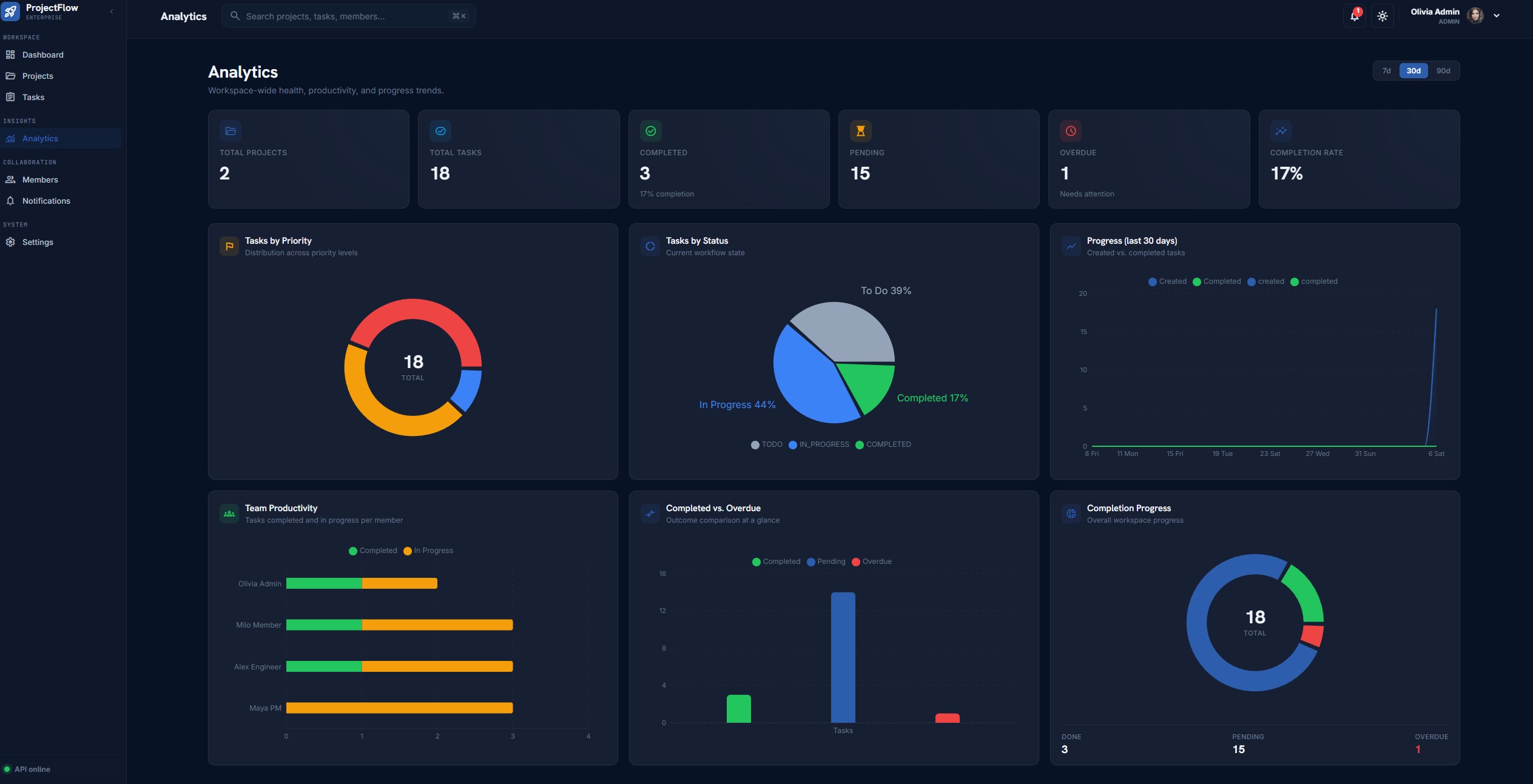

Executive Dashboard Analytics
Executive Dashboard Analytics Dashboard

Project Management

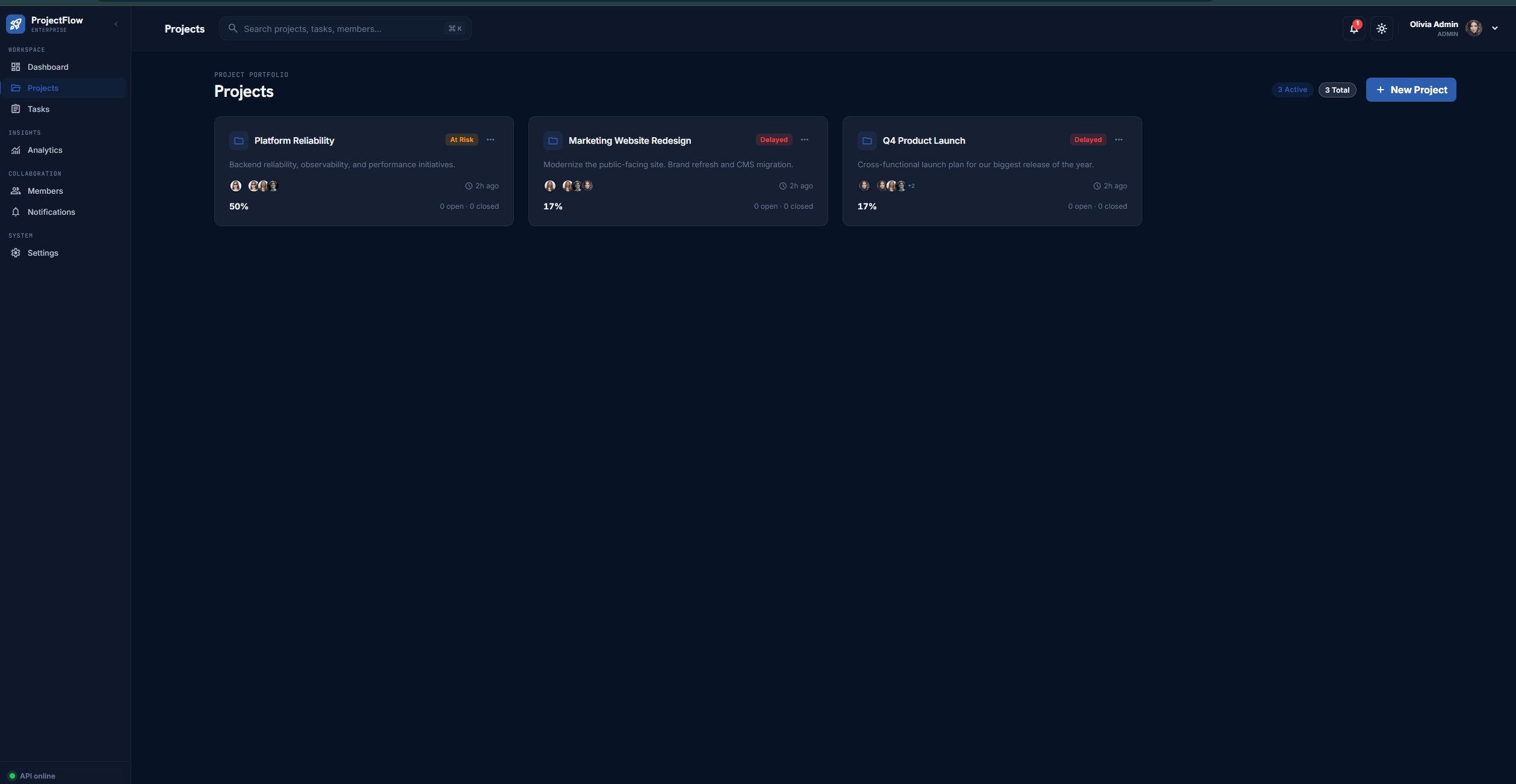

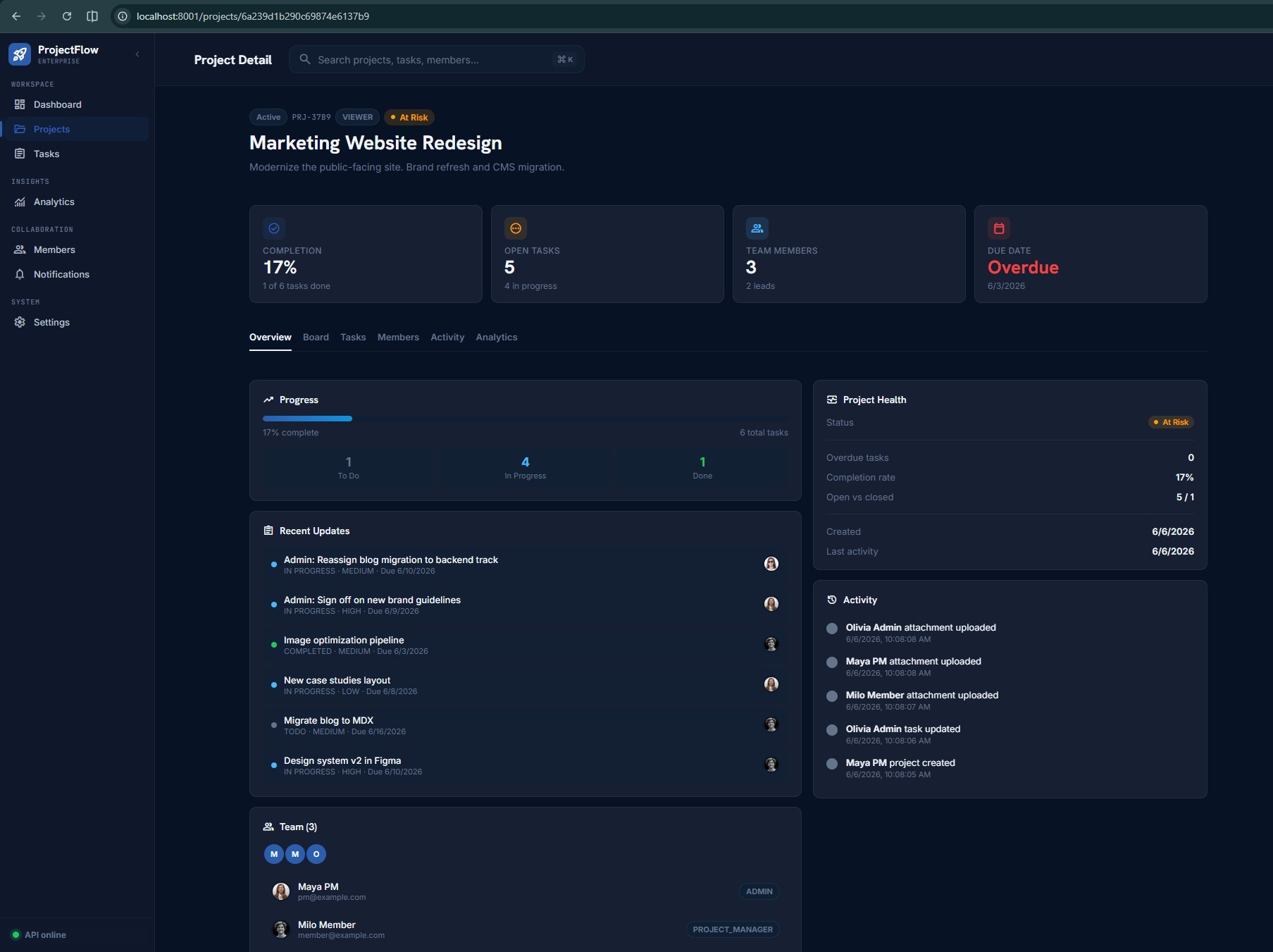

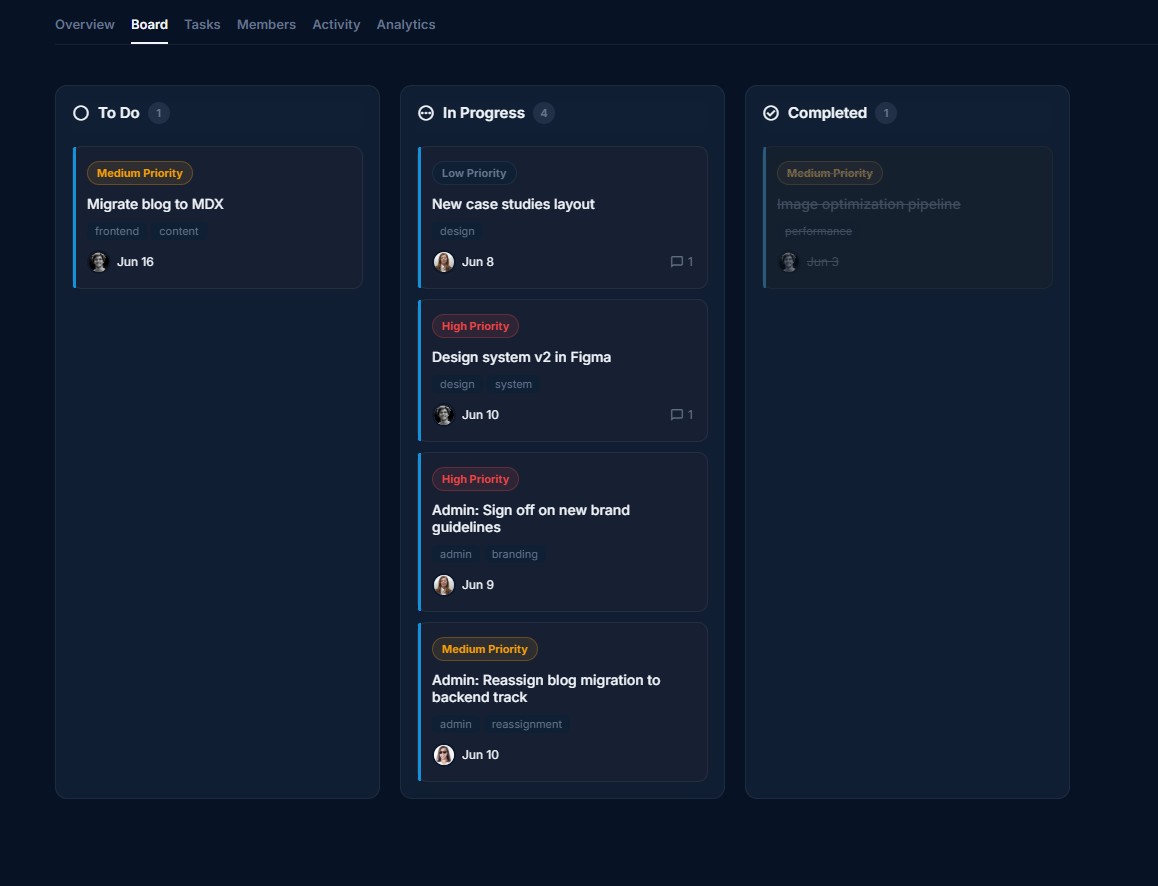

Projects List Project Detail Kanban Board
Projects List Project Detail Kanban Board

Team & Settings

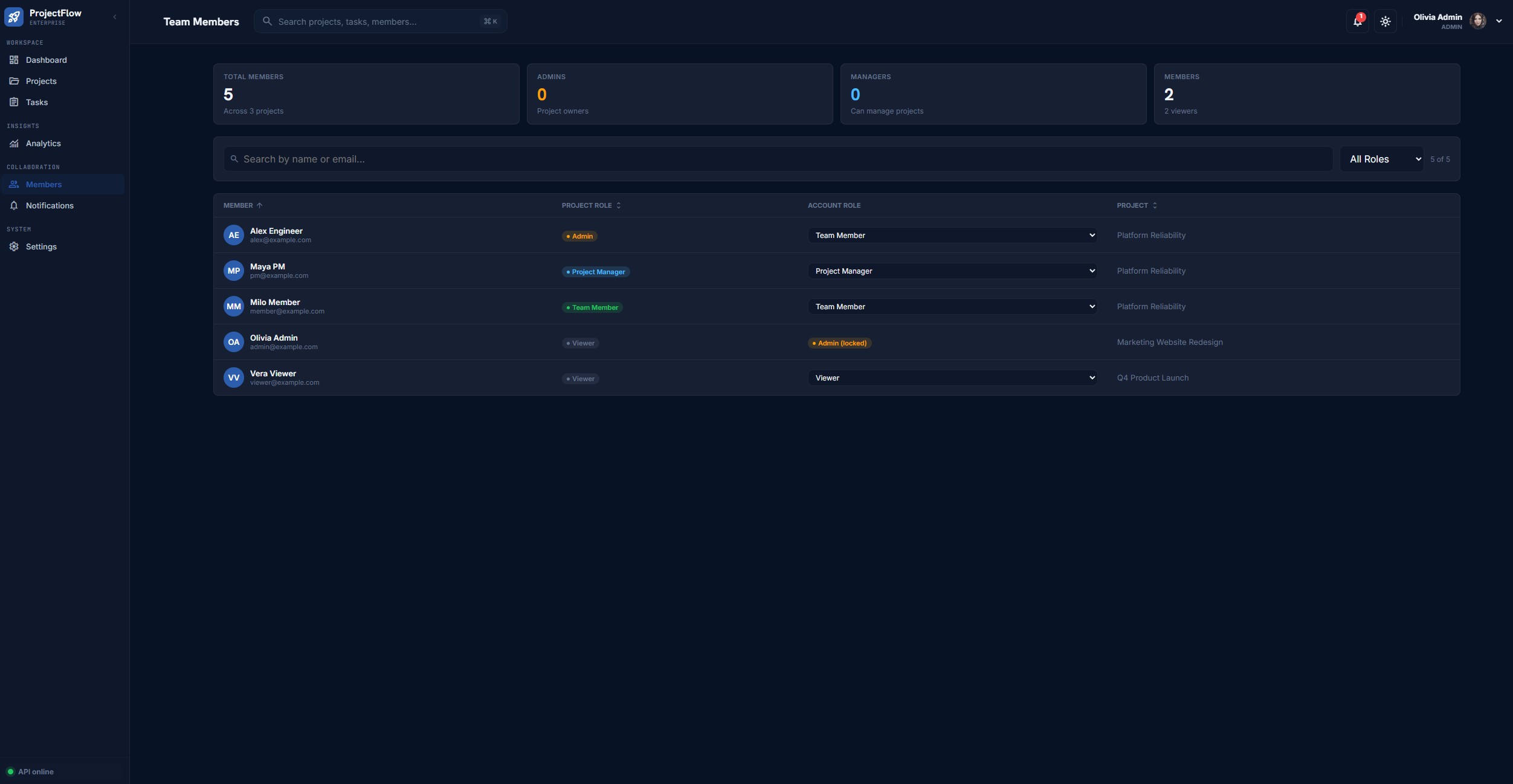

Team Members Settings
Team Members Settings

Tech Stack

Frontend

Technology Purpose
Deno Fresh 1.7 Web framework with island architecture
Preact 10 Lightweight React-compatible rendering
TypeScript 5 Type-safe development
CSS Custom Properties Theming (dark mode) — no Tailwind dependency
Recharts Analytics charting library

Backend

Technology Purpose
Deno 2.x JavaScript/TypeScript runtime
Hono 4.6 Lightweight HTTP framework
Prisma 5.22 Type-safe ORM (MongoDB connector)
MongoDB Atlas Document database
Zod 3.23 Schema validation
@hono/zod-openapi OpenAPI 3 spec generation
JWT Access & refresh token auth
bcryptjs Password hashing

Infrastructure

Service Purpose
Deno Deploy Production hosting (backend + frontend)
GitHub Source control & CI
Swagger UI Interactive API explorer

💡 Technical Highlights

Zero-Dependency PDF Reports

PDF Export uses window.print() with @media print CSS — no jsPDF, no Puppeteer, no server-side rendering. Print styles hide navigation, sidebars, and interactive elements while preserving data tables and charts.

Predictive Completion Forecasting

The health engine estimates completion dates using remaining_tasks / 7_day_velocity. On-track probability derives from health score distance to risk thresholds — deterministic, auditable, and explainable.

Island Architecture Performance

Fresh delivers ~45 KB initial JS (vs 200+ KB for typical React SPAs). Each interactive component hydrates independently when it enters the viewport. Complex islands (Kanban, Analytics, Command Palette) don't block page rendering.

CSS-Only Animations

Health score rings, portfolio risk matrix highlights, and dashboard stat cards use CSS custom property transitions and conic-gradient() for SVG-free progress rings — zero animation library.


Project Health Intelligence

Health Intelligence is a deterministic, rule-based analytics engine — no AI, no LLM, no external APIs. It computes a 0–100 health score for every project from five weighted signals drawn from live database data:

Signal Weight What it measures
Overdue tasks 30 Ratio of overdue non-completed tasks
Completion velocity (7-day) 20 Tasks shipped per week
Deadline proximity 25 Distance from now to project deadline
Team engagement 15 Active members in last 7 days
Workload balance 10 Standard deviation of open tasks across assignees

Risk classification (auto-derived from the score):

  • ON_TRACK — score ≥ 70
  • AT_RISK — score 40–69
  • CRITICAL — score < 40

Predictive outputs:

  • Predicted completion date (remaining tasks / 7-day velocity)
  • On-track probability (0–1 estimate)
  • Score trend with direction indicator
  • Historical sparkline (last 30 snapshots)

Per-project surface:

  • Top 3 risk factors (severity-ranked)
  • Recommended actions (prescriptive next steps)
  • Per-signal score breakdown with progress bars

Workspace overview (dashboard):

  • Average health score across all projects
  • On-track / at-risk / critical counts
  • Top 5 risk + Top 5 healthy projects

API

Method Path Purpose
GET /api/projects/:projectId/health Score, risk, factors, recommendations, breakdown, trend
POST /api/projects/:projectId/health/refresh Force recompute + persist snapshot
GET /api/projects/:projectId/health/history Last 30 snapshots for trend chart
GET /api/dashboard/health Workspace summary

🧗 Engineering Challenges & Decisions

Real-time Collaboration Without WebSockets

Problem: Task assignments and mentions need to feel immediate, but WebSocket infrastructure on Deno Deploy's stateless edge is non-trivial. Solution: 15-second polling + optimistic UI updates. Kanban cards update instantly on drag; the PATCH request fires in background. Conflicts resolve via last-write-wins, reconciled on the next poll.

Deterministic Health Scoring

Problem: Health scores must be reproducible, auditable, and explainable — black-box ML won't work. Solution: Five weighted signals (overdue ratio, velocity, deadline proximity, engagement, workload balance) from live DB queries. Formula is transparent, each refresh logs the breakdown, historical snapshots verify trends.

Composable RBAC Middleware

Problem: No authorization framework exists for Hono/Fresh — every route needs global + per-project role checking. Solution: A composable middleware chain: authenticaterequireRole('ADMIN')requireProjectRole('OWNER'). Each middleware resolves context from JWT payload + Prisma queries, returning 401/403 immediately on failure.

MongoDB Relations Without JOINs

Problem: MongoDB has no JOINs across 8 interrelated collections. Solution: Prisma's MongoDB connector provides relational queries over a document database. Indexes on foreign key fields keep aggregation pipelines under 100ms. Embedded comments/attachments reduce collection scans.

CSV Export at the Edge

Problem: Deno Deploy has no filesystem — fs.writeFileSync doesn't exist. Solution: Stream CSV rows using Deno's TextEncoder + Response body streaming. Frontend receives the stream as a Blob and triggers download via URL.createObjectURL.


Live Deployment

Service URL Purpose
Frontend https://projectflow.engsiam.deno.net User-facing web application
Backend API https://projectflow-backend.engsiam.deno.net REST API
Swagger UI https://projectflow-backend.engsiam.deno.net/docs Interactive API documentation
OpenAPI JSON https://projectflow-backend.engsiam.deno.net/openapi.json Machine-readable spec
Health Check https://projectflow-backend.engsiam.deno.net/health Liveness probe
Readiness https://projectflow-backend.engsiam.deno.net/readyz DB-backed readiness probe

Quick Start

Prerequisites

Tool Version Required For
Deno 2.0+ Backend and frontend runtime
MongoDB 6.0+ Database (local or Atlas free tier)
Git latest Cloning the repository

Setup

# 1. Clone
git clone https://github.com/engsiam/ProjectFlow-Task-Management-APP.git
cd ProjectFlow-Task-Management-APP

# 2. Start MongoDB (Docker)
docker run -d --name projectflow-mongo -p 27017:27017 mongo:7

# 3. Backend
cd backend
cp .env.example .env        # edit DATABASE_URL if needed
deno task prisma:push       # apply schema to MongoDB
deno task seed              # (optional) load demo data
deno task dev               # starts at http://localhost:8000

# 4. Frontend (new terminal)
cd ../frontend
cp .env.example .env        # set API_BASE_URL=http://localhost:8000/api
deno task dev               # starts at http://localhost:8001

Open http://localhost:8001 and sign in with the seeded demo accounts.

Environment Variables

Backend (backend/.env)

# Required
DATABASE_URL="mongodb://localhost:27017/projectflow"
JWT_ACCESS_SECRET="<32+ random bytes>"
JWT_REFRESH_SECRET="<32+ random bytes>"

# Optional
PORT=8000
NODE_ENV=development
FRONTEND_URL=http://localhost:8001
OAUTH_REDIRECT_URL=http://localhost:8000/api/auth

# OAuth
GOOGLE_CLIENT_ID=
GOOGLE_CLIENT_SECRET=
GITHUB_CLIENT_ID=
GITHUB_CLIENT_SECRET=

# Storage
UPLOAD_DIR=uploads
STORAGE_BACKEND=local

Frontend (frontend/.env)

API_BASE_URL=http://localhost:8000/api

Role-Based Access Control

Global Roles

Role Create Project Manage Members Manage Roles Delete Anything
ADMIN
PROJECT_MANAGER ✓ (own projects)
TEAM_MEMBER
VIEWER

Per-Project Roles

Role Edit Project Invite Create Tasks Assign Delete Tasks
OWNER
PROJECT_MANAGER
MEMBER ✓ (assigned only)
VIEWER

Only ADMIN can delete projects, archive projects, or remove members.


API Endpoints

All endpoints live under /api. Full documentation is available at /docs (Swagger UI) and /openapi.json (raw spec).

Auth (/api/auth)

Method Path Description
POST /api/auth/signup Create account
POST /api/auth/login Email + password login
POST /api/auth/refresh Rotate access token
POST /api/auth/logout Invalidate session
GET /api/auth/me Current user profile
GET /api/auth/google Google OAuth flow
GET /api/auth/github GitHub OAuth flow

Users (/api/users)

Method Path Description
PATCH /api/users/me Update own profile
GET /api/users/search Search users for invites
GET /api/users/:userId Public profile
PATCH /api/users/:userId/role Admin-only role change

Projects (/api/projects)

Method Path Description
GET /api/projects List user's projects
POST /api/projects Create project
GET /api/projects/:id Project detail
PATCH /api/projects/:id Edit project
POST /api/projects/:id/archive Archive project
DELETE /api/projects/:id Admin-only delete
GET /api/projects/:id/members List members
GET /api/projects/:id/activity Activity feed
GET /api/projects/:id/export/tasks.csv CSV export

Tasks (/api/projects/:id/tasks)

Method Path Description
GET /api/projects/:id/tasks List tasks (paged, filtered, sorted)
POST /api/projects/:id/tasks Create task
GET /api/tasks/:id Task detail
PATCH /api/tasks/:id Update task
POST /api/tasks/:id/move Change status
DELETE /api/tasks/:id Admin-only delete

Comments, Notifications, Uploads

Method Path Description
POST /api/tasks/:id/comments Add comment
GET /api/tasks/:id/comments List comments
GET /api/notifications List notifications
PATCH /api/notifications/:id Mark notification read
POST /api/uploads/avatar Upload avatar
POST /api/projects/:id/tasks/:taskId/attachments Upload attachment

System

Method Path Description
GET /health Liveness probe
GET /readyz DB-backed readiness probe
GET /api/dashboard Personal dashboard
GET /api/dashboard/portfolio Portfolio & executive overview
GET /api/dashboard/health Workspace health summary
GET /api/analytics/dashboard Workspace analytics
GET /api/analytics/project/:projectId Per-project analytics KPIs

Deployment

ProjectFlow is production-verified for Deno Deploy.

One-Click Deploy

  1. Push this repository to GitHub.

  2. In Deno Deploy, create a new project from your repository.

  3. Configure:

    Setting Value
    App Directory backend
    Entrypoint src/server.ts
    Build Command deno task build:deploy
    Health Check Path /readyz
  4. Add environment variables:

    • DATABASE_URL — MongoDB Atlas connection string
    • JWT_ACCESS_SECRET — 32+ random bytes
    • JWT_REFRESH_SECRET — 32+ random bytes
    • FRONTEND_URL — your deployed frontend URL
  5. Deploy.

Pre-flight Checklist

  • deno task prisma:generate runs locally
  • Build Command set to deno task build:deploy
  • Health Check Path set to /readyz
  • DATABASE_URL points to MongoDB Atlas
  • FRONTEND_URL matches deployed frontend origin
  • JWT secrets are strong random values

Development Scripts

Backend

Task Description
deno task dev Watch mode with hot reload
deno task start Production-style start
deno task prisma:generate Regenerate Prisma client
deno task prisma:push Push schema to MongoDB
deno task prisma:studio Open Prisma Studio
deno task seed Seed demo data
deno task typecheck Type-check backend

Frontend

Task Description
deno task dev Fresh dev server on port 8001
deno task start Build & start production server
deno task build Pre-render static pages
deno task check Type-check (Fresh + Preact)

Quality

deno task typecheck     # Type-check
deno fmt --check        # Format check
deno lint               # Lint

Project Structure

ProjectFlow-Task-Management-APP/
├── backend/                    # Deno + Hono + Prisma API
│   ├── src/
│   │   ├── config/             # Environment, CORS
│   │   ├── controllers/        # Route handlers
│   │   ├── middleware/          # Auth, RBAC, rate-limit, error
│   │   ├── prisma/             # Prisma client singleton
│   │   ├── routes/             # OpenAPI route definitions
│   │   ├── services/           # Business logic
│   │   ├── types/              # Domain enums, context types
│   │   ├── utils/              # Cache, errors, response, CSV
│   │   ├── app.ts              # Hono app factory
│   │   └── server.ts           # Entrypoint
│   ├── prisma/
│   │   ├── schema.prisma       # MongoDB schema
│   │   └── seed.ts             # Demo data seeder
│   ├── scripts/
│   ├── deno.json
│   └── README.md
│
├── frontend/                   # Fresh + Preact UI
│   ├── islands/                # Interactive client components
│   ├── components/             # Server-rendered components
│   ├── lib/                    # API client, auth, RBAC
│   ├── routes/                 # Fresh pages
│   ├── static/                 # CSS, assets
│   ├── dev.ts                  # Dev entrypoint
│   ├── main.ts                 # Prod entrypoint
│   ├── fresh.config.ts
│   └── README.md
│
├── design/                     # Mockups, brand assets
└── README.md                   # You are here

Contributing

  1. Fork the repository
  2. Branch from main: git checkout -b feat/feature-name
  3. Commit your changes using Conventional Commits
  4. Push: git push origin feat/feature-name
  5. Open a Pull Request

Ensure your PR passes:

  • deno task typecheck
  • deno fmt --check
  • deno lint

License

This project is licensed under the MIT License — see the LICENSE file for details.


Built with Deno, Fresh, Hono, Prisma, and MongoDB

If ProjectFlow helped you ship faster, give us a star!


Copyright © 2026 ProjectFlow. MIT Licensed.

About

ProjectFlow – Full Stack Task Management System built with Deno Fresh, Hono, MongoDB, JWT Authentication, PWA, Project & Team Collaboration Features

Topics

Resources

License

Stars

Watchers

Forks

Releases

No releases published

Packages





Contributors
